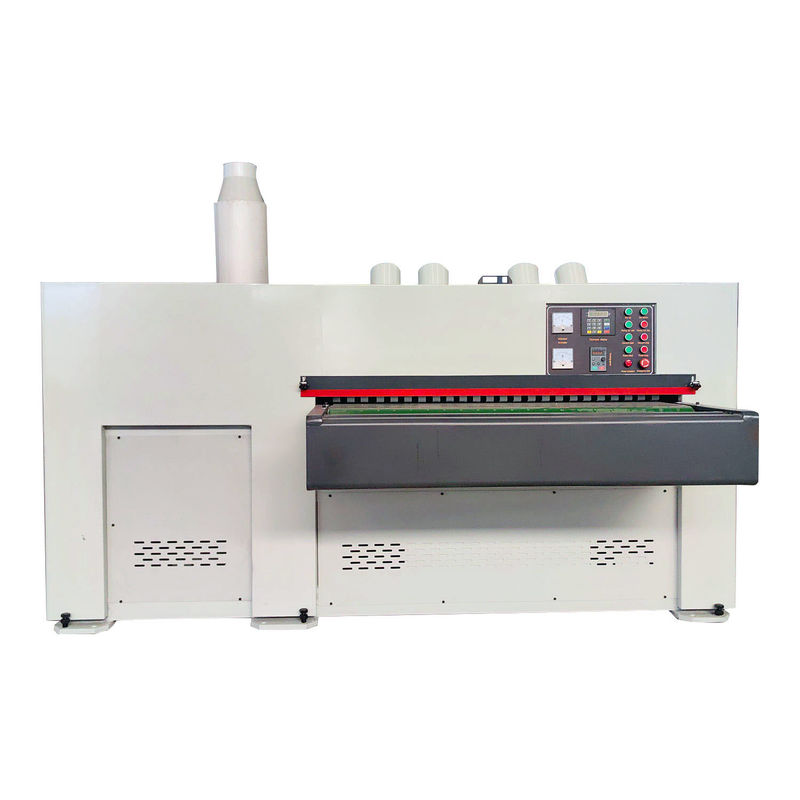

1300mm Maximum Cutting Width Planer for Industrial Woodworking of Solid Wood and MDF
Product Details:
| Place of Origin: | Shandong, China |
| Brand Name: | PHOENIX EQUIPMENT |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 set |
|---|---|
| Price: | $15,300.00/sets 1-2 sets |
|
Detail Information |
|||
| Condition: | New | Max.Planing Depth(mm): | 100 Mm |
|---|---|---|---|
| Max.Planing Width(mm): | 1300 | Type Of Cutter Head: | Straight |
| Video Outgoing-inspection: | Provided | Machinery Test Report: | Provided |
| Marketing Type: | Hot Product 2023 | Warranty Of Core Components: | 1 Year |
| Core Components: | Motor | Type: | Wall Panel Planer |
| Sliding Table Equipped: | NO | Dimension(L*W*H): | 2750*2360*1500mm |
| Warranty: | 1 Year | Weight (KG): | 2800 KG |
| Power (kW): | 22 | Key Selling Points: | Easy To Operate |
| Applicable Industries: | Building Material Shops, Manufacturing Plant, Food & Beverage Factory | Name: | Wall Panel Machine |
| Product Name: | Wood Shaping Planer | Application: | Production Of Concave Convex Wall Panels |
| Maximum Cutting Width: | 1300mm | Maximum Workpiece Thickness: | 100mm |
| Minimum Workpiece Thickness: | 3mm | Minimum Workpiece Length: | 300mm |
| Feeding Speed: | 0-30m/min | Planer Shaft Diameter: | 120mm |
| Vacuum Pump Size: | 1080*920*930mm | ||
Product Description
Products Description
Specification
Model | MB1300S |
Maximum cutting width | 1300mm |
Maximum workpiece thickness | 100mm |
Minimum workpiece thickness | 3mm |
Minimum workpiece length | 300mm |
Feeding speed | 0-30m/min |
Main motor power | 22kw |
Feeding motor power | 3kw |
Power of lifting motor power | 0.55kw |
Vacuum pump motor power | 11kw |

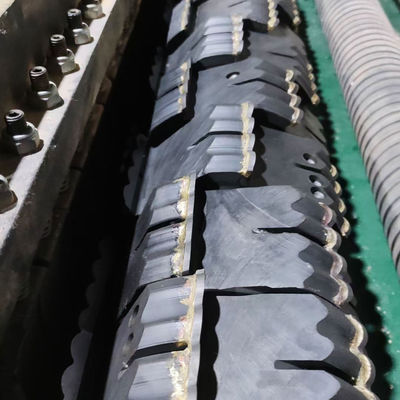

Planer shaft diameter | 120mm |
Equipment size | 2750*2360*1500mm |
Vacuum pump size | 1080*920*930mm |
Weight | 2800kg |
Packing Delivery
1. Outside package: Standard marine export plywood cases.
2. Inner package: Stretch film and plastic film for humidity.
We can package according to your requests
Product Name | Relief Plate Planer |
Brand | PHOENIX EQUIPMENT |
Customized | color, logo, voltage |
MOQ | 1 set |
Package | plywood wooden box |
Payment terms | Alibaba Trade Assurance, T/T, Alipay |

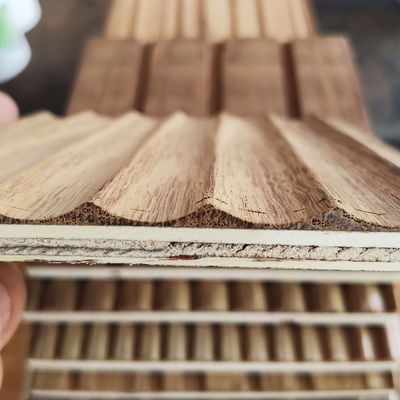

Usage | The equipment make solid wood boards and MDF boards to be planed into concave and convex surfaces |
