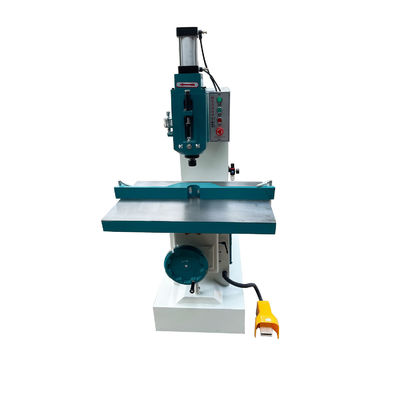

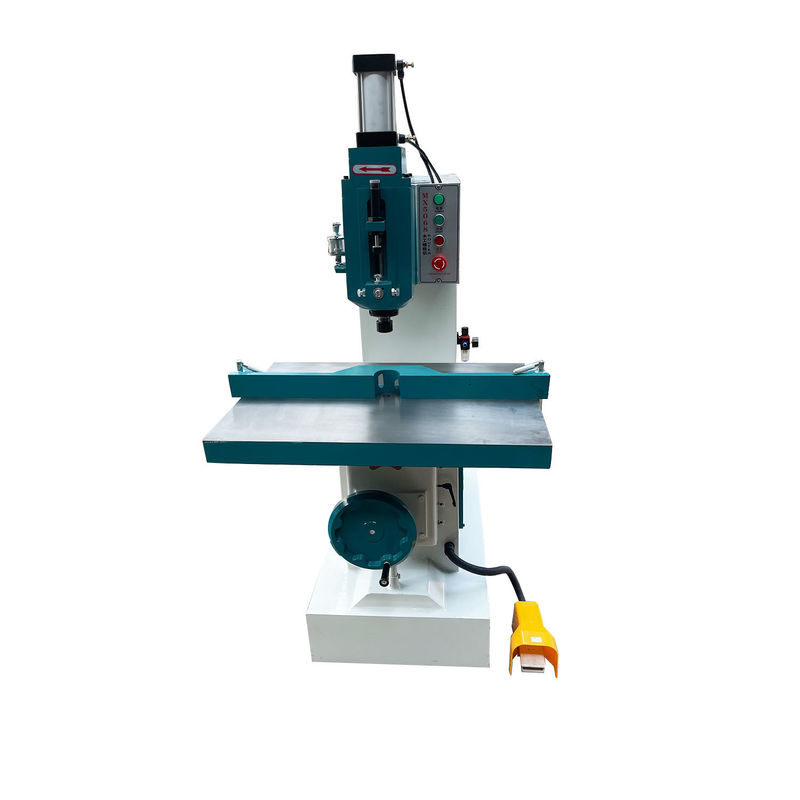

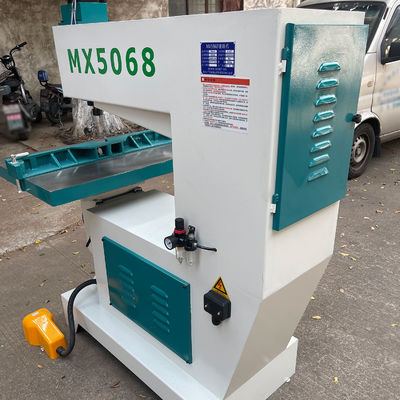

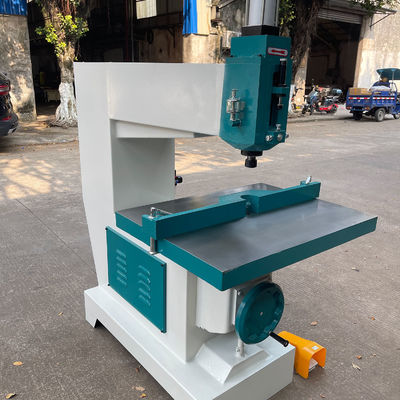

Woodworking Hanging and Copying Engraving Machine MX5068 Workbench Lifting Stroke 180mm
Product Details:
| Place of Origin: | Shandong, China |
| Brand Name: | PHOENIX MACHINERY |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 set |
|---|---|
| Price: | $1,350.00/sets 1-4 sets |
| Packaging Details: | 1. Outside package: Standard marine export plywood cases.<br>2. Inner package: Stretch film and plastic film for humidity.<br>We can package according to your requests |
| Supply Ability: | 100 Set/Sets per Month |
|
Detail Information |
|||
| Condition: | New | Shaft Number: | 1 |
|---|---|---|---|
| Spindle Diameter(mm): | 12.7 Mm | Max.Working Thickness(mm): | 150 Mm |
| Video Outgoing-inspection: | Provided | Machinery Test Report: | Provided |
| Marketing Type: | New Product 2023 | Warranty Of Core Components: | 1 Year |
| Core Components: | PLC, Engine, Bearing, Motor | Dimension(L*W*H): | 1470*800*1700mm |
| Power (kW): | 3 | Warranty: | 1 Year |
| Key Selling Points: | Easy To Operate | Application: | Woodworking Machinery |
| Weight (KG): | 500 Kg | Applicable Industries: | Machinery Repair Shops, Home Use, Construction Works , Advertising Company |
| Showroom Location: | None | Name: | Woodworking Router |
| Product Name: | MX5068 Woodworking Vertical Single Spindle Moulder Milling Machine | Keywords: | Wood Shaper And Moulder |
| Workbench Size: | 700x650mm | Max Working Depth: | 50mm |
| Workbench Lifting Stroke: | 180 Mm | Max.workpiece Thickness: | 150mm |
| Lifting Method: | Spindle Lifting | Spindle Lifting Stroke: | 65mm |
| Overall Dimension: | 1470*800*1700mm | ||
Product Description
Products Description
Specification
Model | MX5057 | MX5068 |
Workbench size | 600×500mm | 700x650mm |
Max working depth | 50mm | 50mm |
Workbench lifting stroke | 80 mm | 180 mm |
Max.workpiece thickness | 150mm | 150mm |
Lifting method | Workbench lifitng | Spindle lifting |
Spindle speed | 18000r/min | 18000r/min |
Tool shank diameter | Φ12.7mm | Φ12.7mm |
Installation power | 2.2kw/3kw | 3kw/4kw |
Spindle lifting stroke | No | 65mm |
weight | 260kg | 500kg |
Overall dimension | 1520*800*1500 | 1470*800*1700mm |
Packing Delivery
1. Outside package: Standard marine export plywood cases.
2. Inner package: Stretch film and plastic film for humidity.
We can package according to your requests
Product Name | High Speed Manual Wood Router Heavy Duty MX5068 Woodworking Upper Spindle Milling Machine |
Brand | PHOENIX EQUIPMENT |
Customized | color, logo, voltage |
MOQ | 1 set |
Package | plywood wooden box |
Payment terms | Alibaba Trade Assurance, T/T, Alipay |
user | Woodworking profiling round holes, irregular holes and profiling simple reliefs, etc. |
