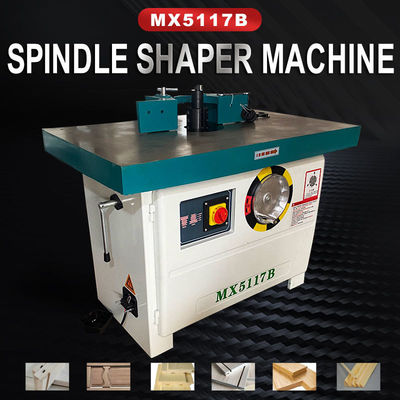

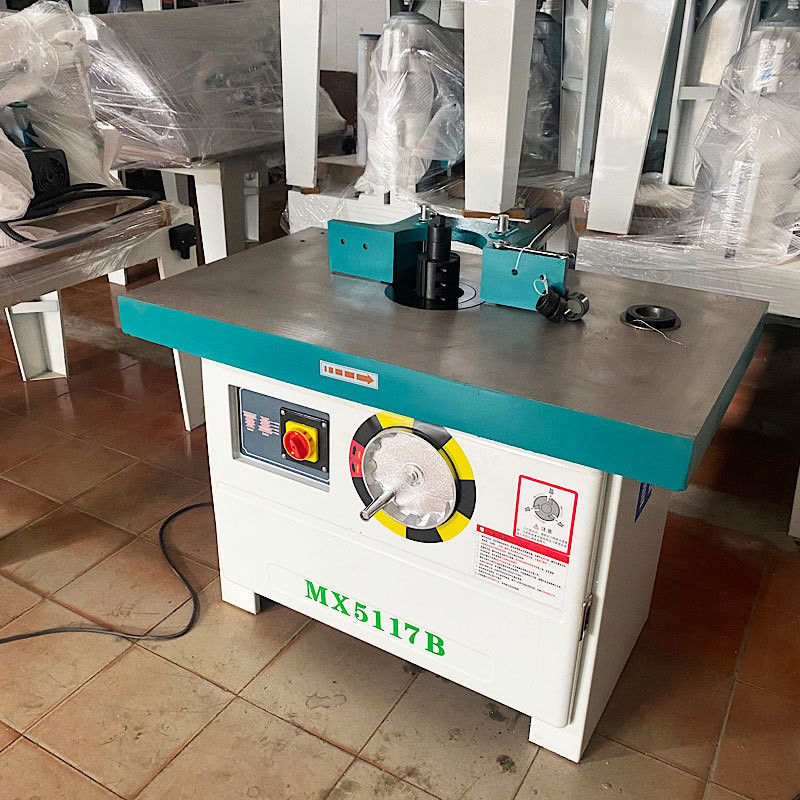

Max Processing Thickness 120mm Vertical Single Head Spindle Shaper Milling Machine
Product Details:
| Place of Origin: | Shandong, China |
| Brand Name: | PHOENIX MACHINERY |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 set |
|---|---|
| Price: | $1,020.00/sets 1-4 sets |
| Packaging Details: | 1. Outside package: Standard marine export plywood cases. <br>2. Inner package: Stretch film and plastic film for humidity. <br>We can package according to your requests<br>Port<br>Qingdao port |
| Supply Ability: | 300 Acre/Acres per Month |
|
Detail Information |
|||
| Condition: | New | Spindle Diameter(mm): | 90 Mm |
|---|---|---|---|
| Max.Working Thickness(mm): | 120 Mm | Video Outgoing-inspection: | Provided |
| Machinery Test Report: | Provided | Marketing Type: | Ordinary Product |
| Warranty Of Core Components: | 1 Year | Core Components: | Motor |
| Voltage: | 380V/220V | Dimension(L*W*H): | 1130*670*1050mm |
| Power (kW): | 4 | Warranty: | 1 Year |
| Key Selling Points: | Easy To Operate | Application: | Trimmer/different Shape Edge Trimmers |
| Weight (KG): | 325 Kg | Applicable Industries: | Hotels, Building Material Shops, Machinery Repair Shops, Farms, Retail, Construction Works |
| Showroom Location: | Brazil, Peru, India, Mexico, Thailand, Morocco | Function: | Wood Shaper Spindle Moulder |
| Name: | Spindle Moulder | Brand: | MX5117B |
| Color: | Customer Actual Requirements | Keywords: | Woodworking Milling Machine |
| Cutter Spindle Diameter: | 35mm/customize | Max Processing Thickness: | 120mm |
| Worktable Size(L*W): | 1050*670mm | Working Form: | Semi-automatic |
| Scope Of Application: | Used For Shaping And Milling Of Wood | Port: | We Can Package According To Your Requests Port Qingdao Port |
Product Description
Products Description
Specification
Model | MX5117B | MX5317 |
Spindle speed | 7000/10000r/min | 7000/10000r/min |
Cutter head diameter | Φ90mm | Φ90mm |
Cutter spindle diameter | Φ35mm/customize | Φ35mm/customize |
Max processing thickness | 120mm | 120mm |
Install power | 4kw | 4kw*2 |
Worktable size(L*W) | 1050*670mm | 1550*670mm |
Weight | 325kg | 550kg |
Overall size(L*W*H) | 1130*670*1050mm | 1600*700*1050mm |

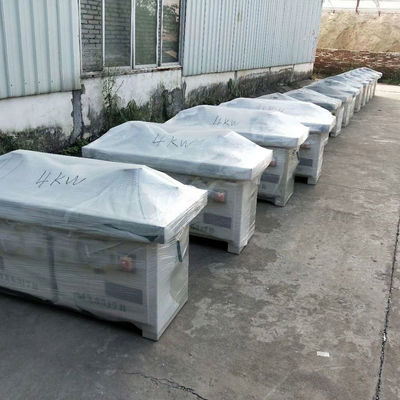

Packing Delivery
1. Outside package: Standard marine export plywood cases.
2. Inner package: Stretch film and plastic film for humidity.
We can package according to your requests
Product Name | Woodworking Vertical Spindle Moulder Machine MX5117B/Wood Milling Machine For Furniture |
Brand | PHOENIX EQUIPMENT |
Customized | color, logo, voltage |
MOQ | 1 set |
Package | plywood wooden box |
Payment terms | Alibaba Trade Assurance, T/T, Alipay |
Usage | Furniture processing, panel furniture, wood products punching, plastic products punching |
