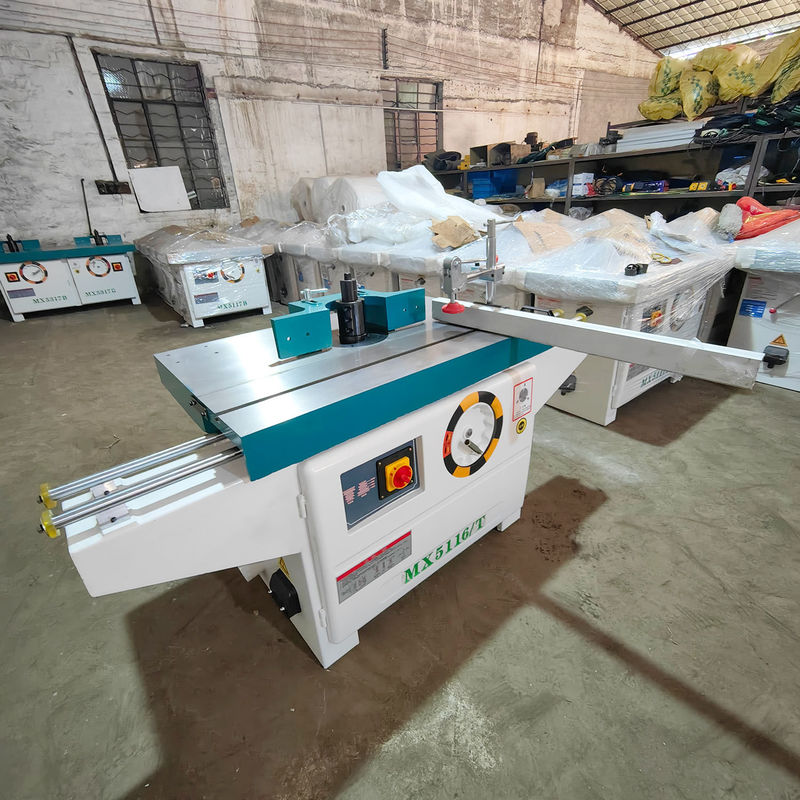

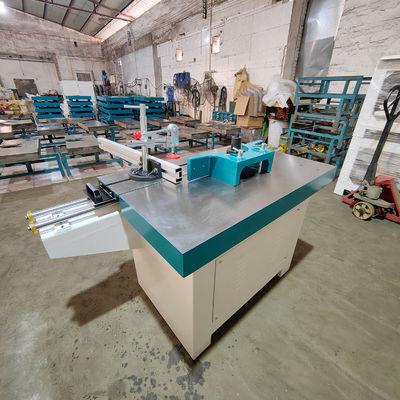

Single Axis Wood Shaping Machine with Automatic Sliding Table and 800mm Max Working Width
Product Details:
| Place of Origin: | Shandong, China |
| Brand Name: | PHOENIX EQUIPMENT |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 set |
|---|---|
| Price: | $1,300.00/sets 1-1 sets |
| Packaging Details: | 1. Outside package: Standard marine export plywood cases.<br>2. Inner package: Stretch film and plastic film for humidity.<br>We can package according to your requests |
| Supply Ability: | 100 Set/Sets per Month |
|
Detail Information |
|||
| Condition: | New | Shaft Number: | Single |
|---|---|---|---|
| Spindle Diameter(mm): | 90 Mm | Max.Working Thickness(mm): | 120 Mm |
| Video Outgoing-inspection: | Provided | Machinery Test Report: | Provided |
| Marketing Type: | Hot Product 2023 | Warranty Of Core Components: | 1 Year |
| Core Components: | Motor | Dimension(L*W*H): | 1700*720*1100mm |
| Power (kW): | 4kw/5.5kw/7.5kw | Warranty: | 1 Year |
| Key Selling Points: | Easy To Operate | Application: | Factory |
| Weight (KG): | 450 Kg | Applicable Industries: | Hotels, Building Material Shops, Machinery Repair Shops, Manufacturing Plant, Home Use, Construction Works , Furniture Factory |
| Showroom Location: | None | Product Name: | Spindle Moulder Machine |
| Name: | Sliding Table Spindle Shaper | Modle Name: | MX5116T |
| Max Working Thickness: | 120mm | Max Working Width: | 800mm |
| Max Working Length: | 900mm | ||
Product Description
Products Description
Specification
Name | Spindle Moulder |
Model | MX5116T |
Max working thickness | 120mm |
Max working width | 800mm |
Max working length | 900mm |

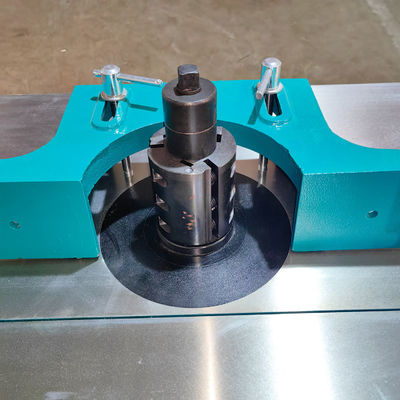

Spindle diameter | 90mm |
Spindle speed | 8000/10000r/min |
Total power | 4kw/5.5kw/7.5kw |
Weight | 450kg |
Overall dimensions | 1700*720*1100mm |
Packing Delivery
1. Outside package: Standard marine export plywood cases.
2. Inner package: Stretch film and plastic film for humidity.
We can package according to your requests
Product Name | MX5116T Sliding Table Single Spindle Shaper Wood Spindle Moulder Machine |
Brand | PHOENIX EQUIPMENT |
Customized | color, logo, voltage |
MOQ | 1 set |
Package | plywood wooden box |
Payment terms | Alibaba Trade Assurance, T/T, Alipay |
Usage | wood parts and parts of the plane, curved surface planing, chamfering, from the line, such as profiling processing purposes. |
