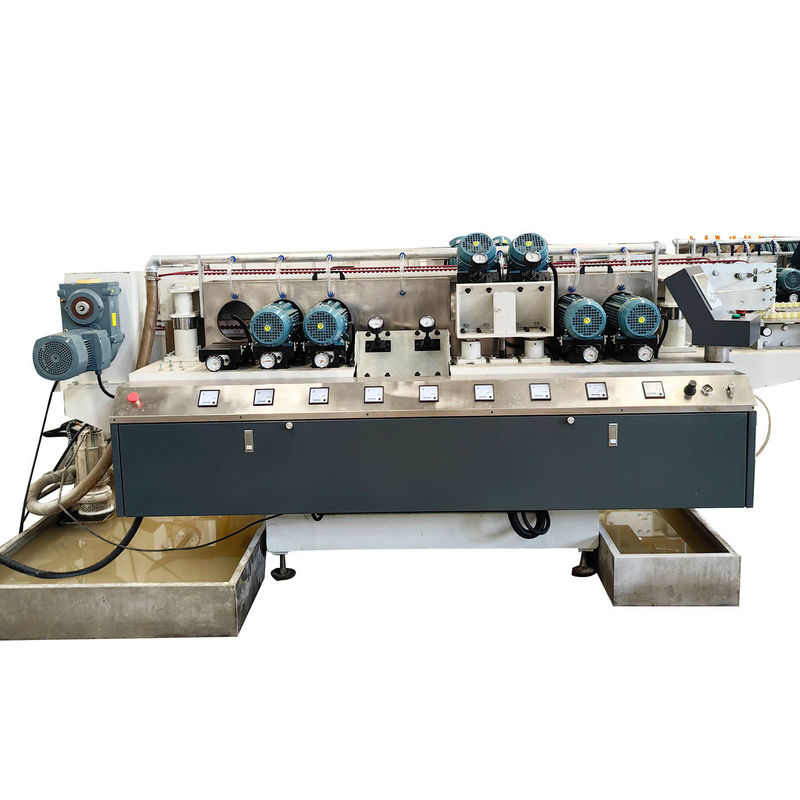

Automatic Intelligent Glass Repositioning CNC Glass Double Straight Edging Machine
Product Details:
| Place of Origin: | Shandong, China |
| Brand Name: | Phoenix Equipment |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 set |
|---|---|
| Price: | $27,500.00 - $116,500.00/sets |
|
Detail Information |
|||
| Applicable Industries: | Building Material Shops, Manufacturing Plant, Retail, Construction Works | Showroom Location: | None |
|---|---|---|---|
| Video Outgoing-inspection: | Provided | Machinery Test Report: | Provided |
| Marketing Type: | New Product 2024 | Warranty Of Core Components: | 1 Year |
| Core Components: | PLC, Motor, Pump | Condition: | New |
| Production Capacity: | 1-8m/min | Voltage: | 380V/50Hz/3P |
| Power: | 26KW | Dimension(L*W*H): | 5000*2500*1500mm |
| Weight: | 4000 Kg | Warranty: | 1 Year |
| Key Selling Points: | Easy To Operate | Name: | Automatic Glass Edging Machines |
| Usage: | Glass Grinding And Polishing | Advanced Function: | Automatic Intelligent Glass Reposition |
| Products: | Safety Glass Tempering | Number Of Spindles On Each Side: | 5 |
| Thickness Of Glass Processing: | 3-8mm | Glass Width: | 160-1000mm |
| Parallel Tolerance Of Processing Glass: | ±0.2mm/m | Diagonal Tolerance Of Processing Glass: | ±0.5mm/m |
| Compressed Air Input(Mpa): | 0.6--0.8Mpa | ||
Product Description
Products Description
Specification
Model | PYM10 |
Number of spindles on each side ( pc ) | 5 |
Transmission speed（m/min） | 1-8m/min |
Thickness of glass processing（mm） | 3-8mm |
Glass width (mm） | 160-1000mm |
Parallel tolerance of processing glass ( mm ) | ±0.2mm/m |
Diagonal tolerance of processing glass ( mm ) | ±0.5mm/m |
Installed power（kW） | 26KW |
Voltage（V） | 380V/50Hz/3P |
Compressed air input（Mpa） | 0.6--0.8Mpa |
Packing Delivery
1. Outside package: Standard marine export plywood cases.
2. Inner package: Stretch film and plastic film for humidity.
We can package according to your requests
Product Name | High-end fully automatic glass edging machines Simple to operate glass double edging machine |
Brand | PHOENIX EQUIPMENT |
Customized | color, logo, voltage |
MOQ | 1 set |
Package | plywood wooden box |
Payment terms | Alibaba Trade Assurance, T/T, Alipay |
Usage | It is suitable for grinding glass with all kinds of specifications |
