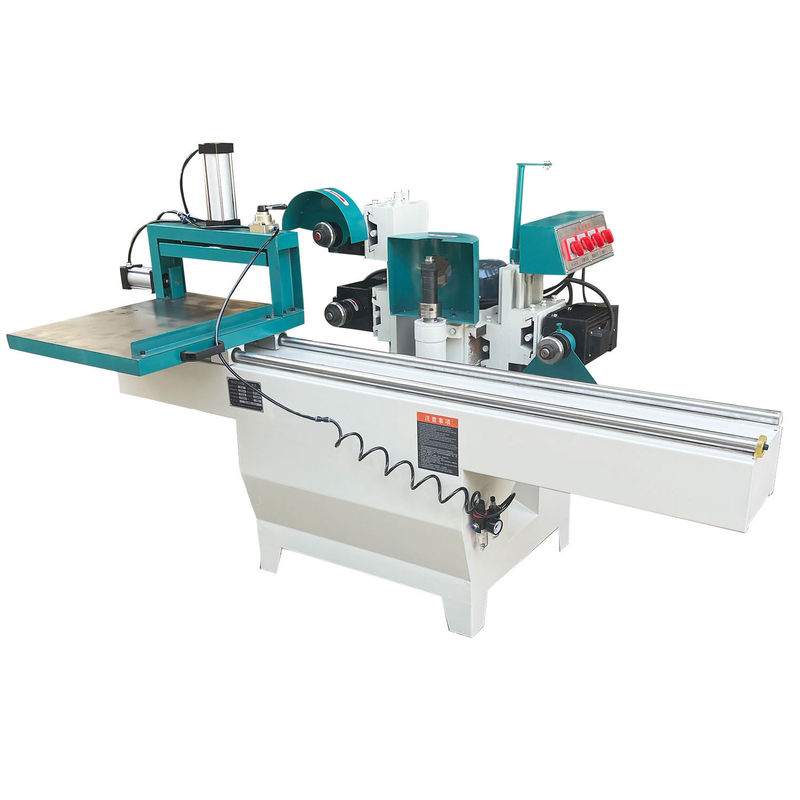

Double Track Five Saw Blade Tenon Machine for Woodworking Worktable Size 700*550mm
Product Details:
| Place of Origin: | Shandong, China |
| Brand Name: | PHOENIX MACHINERY |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 set |
|---|---|
| Price: | $1,299.00/sets 1-5 sets |
|
Detail Information |
|||
| Application: | Furniture Workshop | Condition: | New |
|---|---|---|---|
| Automatic Grade: | Automatic | Video Outgoing-inspection: | Provided |
| Machinery Test Report: | Provided | Marketing Type: | Hot Product 2023 |
| Warranty Of Core Components: | 1 Year | Core Components: | Motor |
| Power: | 7.7kw | Dimension(L*W*H): | 1950*1300*1350mm |
| Warranty: | 1 Year | Key Selling Points: | Easy To Operate |
| Applicable Industries: | Hotels, Garment Shops, Building Material Shops, Manufacturing Plant, Home Use, Printing Shops, Construction Works , Energy & Mining, Other, Advertising Company | Showroom Location: | None |
| Weight (KG): | 380 | Product Name: | Double Track Five Butterfly Tenoning Machine |
| Worktable Size: | 700*550mm | Guide Rail Length: | 1950mm |
| Max Processing Length: | 80mm | Max Processing Thickness: | 10-80mm |
| Spindle Speed: | 6000r/min | Diameter Of Tenon Thickness Saw Blade: | 255mm |
| Shoulder Cutting Saw Blade Diameter: | 200mm | Diameter Of End Cutting Saw Blade: | 255mm |
| Number Of Guide Rails: | Double Guide Rail | ||
Product Description
Products Description
Specification
Mode | MJ105 |
Number of guide rails | double guide rail |
Worktable size | 700×550mm |
Guide rail length | 1950mm |
Maximum tenon length | 80mm |
Tenon thickness | 10-80mm |
Spindle speed | 6000r/min |
Diameter of tenon thickness saw blade | 255mm |
Shoulder cutting saw blade diameter | 200mm |
Diameter of end cutting saw blade | 255mm |
Motor power | 7.7kw |
Weight of machine | 380kg |
Overall size(L*W*H) | 1950*1300*1350mm |
Packing Delivery
1. Outside package: Standard marine export plywood cases.
2. Inner package: Stretch film and plastic film for humidity.
We can package according to your requests
Product Name | Five saw blade tenon machine |
Brand | PHOENIX EQUIPMENT |
Customized | color, logo, voltage |
MOQ | 1 set |
Package | plywood wooden box |
Payment terms | Alibaba Trade Assurance, T/T, Alipay |
user | Woodworking profiling round holes, irregular holes and profiling simple reliefs, etc. |
