Woodworking Machinery Wide Belt Sanding Sander Machine with 3-10m/min Feeding Speed
Product Details:
| Place of Origin: | Shandong, China |
| Brand Name: | Phoenix |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 set |
|---|---|
| Price: | $6,500.00/acres 1-2 acres |
| Packaging Details: | 1. Outside package: Standard marine export plywood cases. <br>2. Inner package: Stretch film and plastic film for humidity. <br>We can package according to your requests<br>Port<br>Qingdao port |
| Supply Ability: | 100 Acre/Acres per Month |
|
Detail Information |
|||
| Condition: | New | Machine Type: | Wood Sanding Machine |
|---|---|---|---|
| Video Outgoing-inspection: | Provided | Machinery Test Report: | Provided |
| Marketing Type: | Ordinary Product | Warranty Of Core Components: | 1 Year |
| Core Components: | PLC, Engine, Bearing, Motor, Gear, Pump | Warranty: | 1 Year |
| Weight (KG): | 2500 KG | Key Selling Points: | Automatic |
| Showroom Location: | United Kingdom, United States, Italy, France, Germany, Viet Nam | Applicable Industries: | Building Material Shops, Manufacturing Plant, Construction Works , Advertising Company, Other |
| Name:: | Polishing Sander | Max. Working Width: | 1300mm |
| Working Height: | 5-180mm | Feeding Speed: | 3-10m/min |
| Feeding Power: | 1.5kw | Disc Turn Power: | 2.2kw*2 |
| Vertical Roller Turn Power: | 1.5kw*2 | Horizontal Roller Turn Power: | 2.2kw*2 |
| Voltage: | 220V/380V/415V/Customized | Port: | We Can Package According To Your Requests Port Qingdao Port |
Product Description

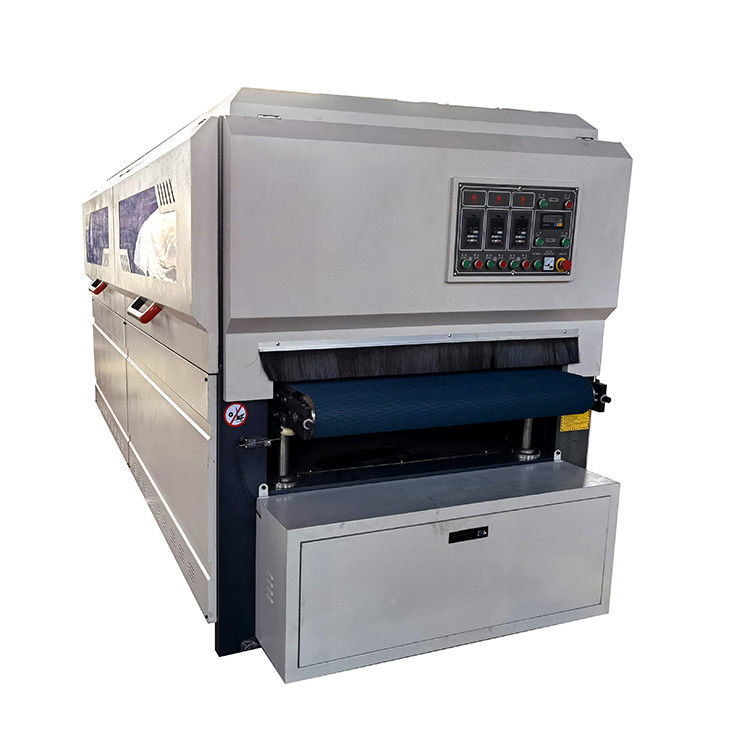

Woodworking machinery Wide Belt brush Sanding Sander Machine
Technical Parameter
| Model | PF6S-1300 | Vertical roller turn power, 9pcs | 1.5kw*2 | |
| Max. working width | 1300mm | Vertical roller swing power | 0.37kw | |
| Working height(may customized) | 5-180mm | Horizontal roller turn power | 2.2kw*2 | |
| Feeding power | 1.5kw | Disc turn power, 11pc*2 | 1.5kw*2 | |
| Feeding speed(fenquency control) | 3-10m/min | Disc swing power, 11pc*2 | 0.37kw | |
| Feeding plat lifting power | 0.45kw | Over dimension | 3700*2000*1800mm | |
| Disc/vertical/horizontal roller height | manual adjust | Weight | 2000kg |
