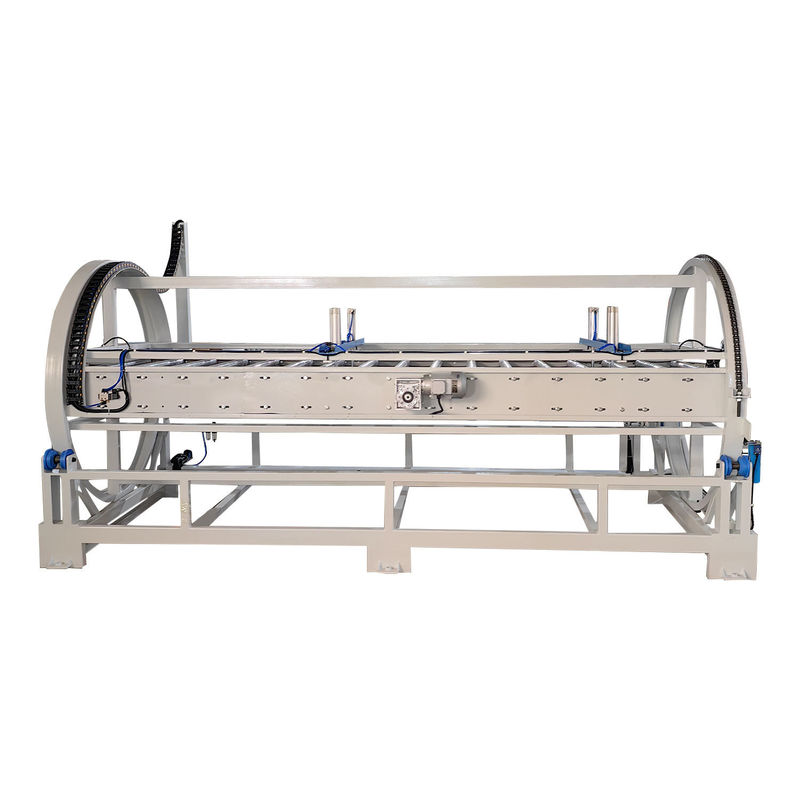

180 Degree Steering Turnover Machine For High Productivity Wooden Door Production Line
Product Details:
| Place of Origin: | Shandong, China |
| Brand Name: | PHOENIX EQUIPMENT |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 set |
|---|---|
| Price: | $7,500.00/sets 1-4 sets |
|
Detail Information |
|||
| Condition: | New | Machine Type: | Panel Turnover Machine |
|---|---|---|---|
| Video Outgoing-inspection: | Provided | Machinery Test Report: | Provided |
| Marketing Type: | Hot Product 2024 | Warranty Of Core Components: | 1 Year |
| Core Components: | PLC, Engine, Bearing, Motor | Warranty: | 1 Year |
| Weight (KG): | 900 KG | Power (kW): | 3 |
| Key Selling Points: | High Productivity | Showroom Location: | None |
| Applicable Industries: | Hotels, Garment Shops, Building Material Shops, Machinery Repair Shops, Manufacturing Plant, Farms, Restaurant | Name: | Panel Turnover Machine |
| Function: | Flip Big Board | Product Name: | 180 Degree Panel And Door Turnover Machine |
| Actual Load: | 100kg | Table Height: | 800mm |
| Maximum Plate: | 2800*1300mm | Minimum Plate: | 300*300mm |
| Nunber Of Flips: | 4/min | Dimension: | 2800 * 1500 * 1800mm |
| Automatic Grade: | Automatic | ||
Product Description
Products Description
Specification
Model | PM-FB1325 |
Actual load | 100kg |
Table height | 800mm |
Energy consumption power | 3kw |
Maximum plate | 2800*1300mm |
Minimum plate | 300*300mm |
Nunber of flips | 4/min |
Weight | 900kg |
Dimension | 2800 * 1500 * 1800mm |
Packing Delivery
1. Outside package: Standard marine export plywood cases.
2. Inner package: Stretch film and plastic film for humidity.
We can package according to your requests
Product Name | automatic Door and panel Turnover machine with 180 degree turnover with conveyor roller table |
Brand | PHOENIX EQUIPMENT |
Customized | color, logo, voltage |
MOQ | 1 set |
Package | plywood wooden box |
Payment terms | Alibaba Trade Assurance, T/T, Alipay |
Usage | Mainly used for flipping various types of wooden boards such as plywood, particleboard, exterior wall insulation board, solid wood flooring, plastic board, etc. in the production process. |
