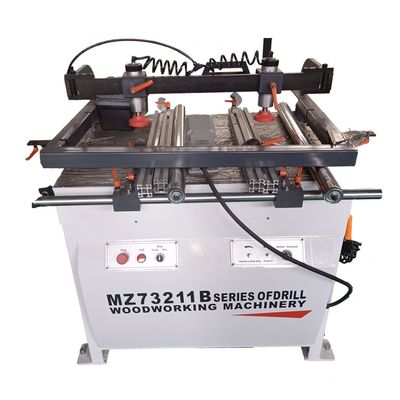

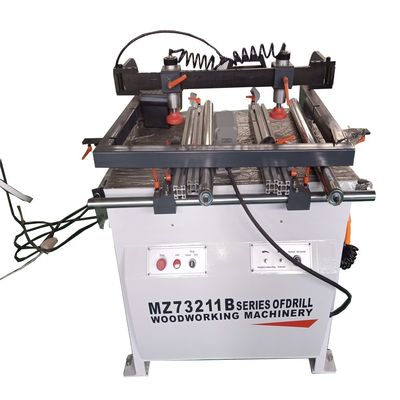

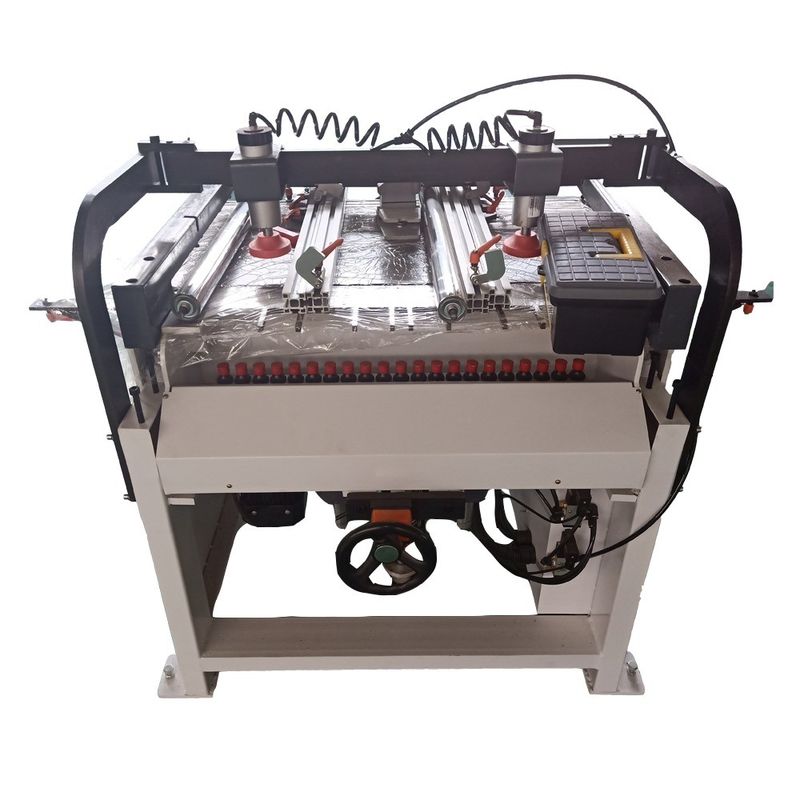

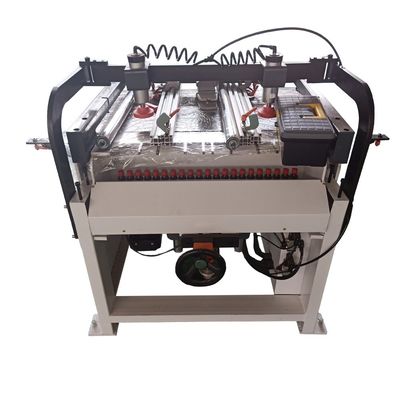

Wood Dowel Multi-Boring Drilling Machine 380V/220V/410V/415V Voltage for Woodworking
Product Details:
| Place of Origin: | Shandong, China |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 set |
|---|---|
| Price: | $1,800.00/cases 1-2 cases |
| Packaging Details: | 1. Outside package: Standard marine export plywood cases. <br>2. Inner package: Stretch film and plastic film for humidity. <br>We can package according to your requests<br>Port<br>Qingdao port |
| Supply Ability: | 100 Case/Cases per Day |
|
Detail Information |
|||
| CNC Or Not: | Normal | Condition: | New |
|---|---|---|---|
| Line Number: | Single | Video Outgoing-inspection: | Provided |
| Machinery Test Report: | Provided | Marketing Type: | New Product 2020 |
| Warranty Of Core Components: | 2 Years | Core Components: | PLC, Engine, Bearing, Motor |
| Voltage: | 380V 220V 410V 415V | Dimension(L*W*H): | 1100x1300x1420mm |
| Warranty: | 2 Years | Weight (KG): | 400 KG |
| Power (kW): | 1.5 | Key Selling Points: | High-accuracy |
| Applicable Industries: | Hotels, Building Material Shops, Machinery Repair Shops, Home Use, Other, Furniture Factory | Showroom Location: | United States, Italy, France, Germany, Viet Nam |
| Packaging Details: | Plywood Package | ||
Product Description
Woodworking Machine Wood Dowel Multi-Boring Drilling Machine woodworking multi boring machine
Product Description
Specification
| Technical Paramaters: | MZ73212 | MZ73211 |
| Max drill diameter | 35mm | 35mm |
| Max drill depth | 60mm | 60mm |
| Spindles | 21x2 | 21x1 |
| Center distance between spindles | 32mm | 32mm |
| Spindle speed | 2840 r/min | 2840 r/min |
| Motor power | 3kw | 1.5kw |
| Weight | 600KG | 400KG |
| Dimension | 1800X1700X1600mm | 1800X1700X1420mm |
