High Productivity Portable Edge Banding Machine with Auto Gluing and Trimming Buffing
Product Details:
| Place of Origin: | Shandong, China |
| Brand Name: | Phoenix |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 set |
|---|---|
| Price: | $450.00/acres 1-4 acres |
| Packaging Details: | 1. Outside package: Standard marine export plywood cases. <br>2. Inner package: Stretch film and plastic film for humidity. <br>We can package according to your requests<br>Port<br>Qingdao port |
| Supply Ability: | 500 Acre/Acres per Month |
|
Detail Information |
|||
| Condition: | New | Machine Type: | Edge Banding Machine |
|---|---|---|---|
| Video Outgoing-inspection: | Provided | Machinery Test Report: | Provided |
| Marketing Type: | Hot Product 2022 | Warranty Of Core Components: | 1 Year |
| Core Components: | PLC, Engine, Bearing, Gearbox, Motor, Pressure Vessel, Gear, Pump | Warranty: | 1 Year |
| Weight (KG): | 50 KG | Power (kW): | 1.2 |
| Key Selling Points: | High Productivity | Showroom Location: | United Kingdom, United States, Italy, France, Germany |
| Applicable Industries: | Hotels, Garment Shops, Building Material Shops, Machinery Repair Shops, Manufacturing Plant, Other | Type: | Curve And Straight Line Dual-purpose |
| Port: | We Can Package According To Your Requests Port Qingdao Port | ||
Product Description

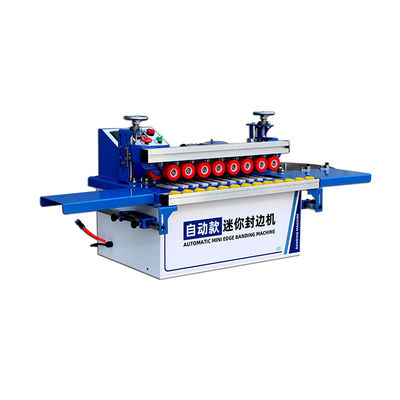

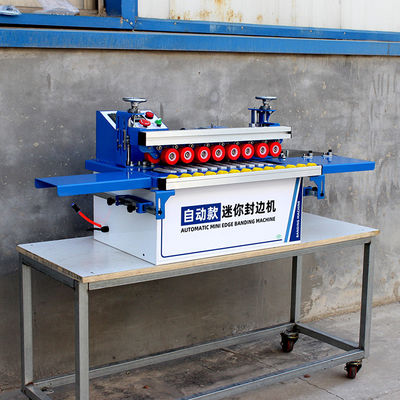

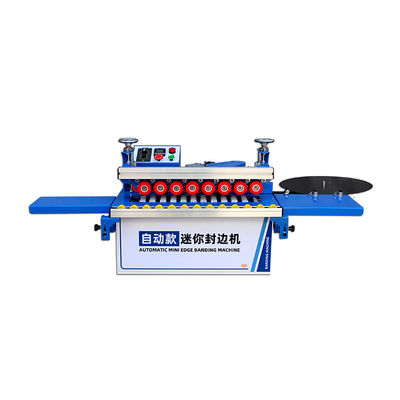

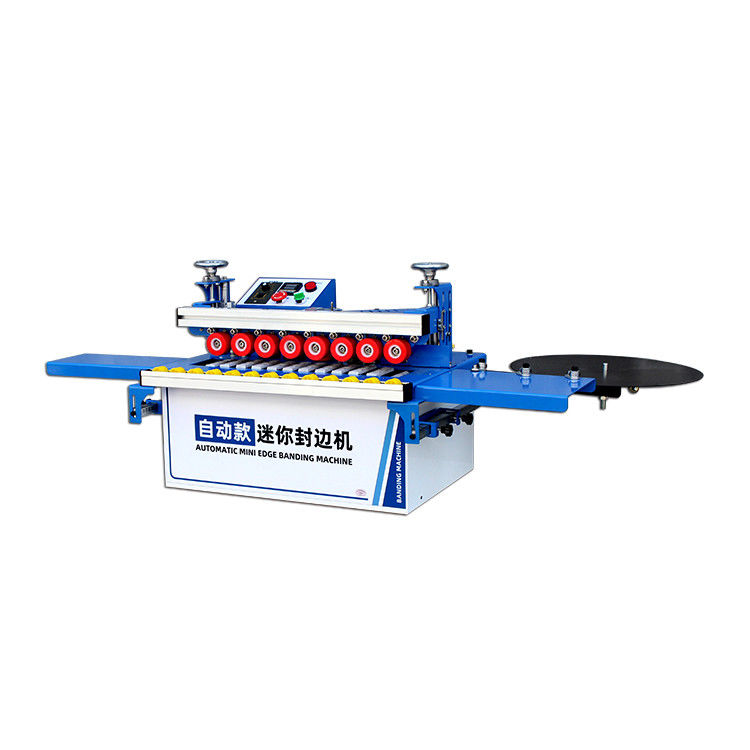

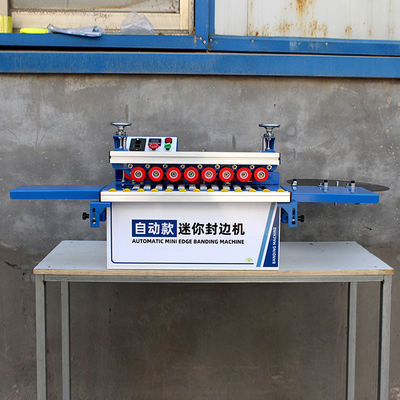

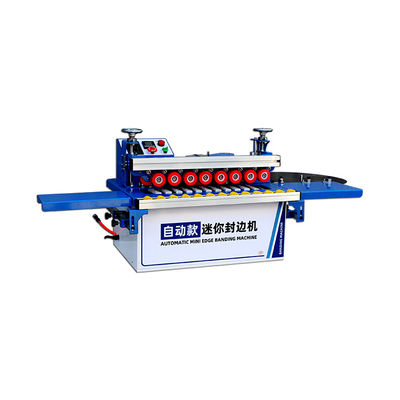

edge banding machine with auto gluing and trimming buffing and automatic end cutting
| Model | MD01 | MD02 | MD03 | MD04 | MY07 |
| Max banding Thickness | 0.3~3.0mm | 0.3~3.0mm | 0.3~3.0mm | 0.3~3.0mm | 0.3~3.0mm |
| Max banding Height | 10~45mm | 10~45mm | 10~45mm | 10~45mm | 10~45mm |
| Working pressure | 3~6kg/cm square | 3~6kg/cm square | 3~6kg/cm square | 3~6kg/cm square | 3~6kg/cm square |
| Working Temperature | 130~180 degree | 130~180 degree | 130~180 degree | 130~180 degree | 130~180 degree |
| Speeding | 0~5m/min | 0~5m/min | 0~5m/min | 0~5m/min | 0~5m/min |
| Glue Pot | 1000ml | 1000ml | 1000ml | 1000ml | 1000ml |
| Type way | double glue cover | double glue cover | double glue cover | double glue cover | double glue cover |
| Trimming/Buffing power | 1200W/NO | 1300W/1300W | 1300W1300W | 1300W1300W | 1300W1300W |
| Total power | 1200W | 3000W | 3600W | 3600W | 3600W |
| Voltage | 110V/220V | 110V/220V | 110V/220V | 110V/220V | 110V/220V |
| Overall dimensions | 62x45x50cm | 92×50×50cm | 100×50×50cm | 100×50×50cm | 100×50×50cm |
| Weight | 50kg | 65kg | 80kg | 85kg | 90kg |
| Edge banding | straight and curve | straight and curve | straight | straight and curve | straight and curve |
| Trimming&Buffing | straight | straight | straight | straight | straight |
| Operation way | automatic | automatic | automatic | automatic | automatic |
| Funtions | gluing,trimming,pneumatic | gluing,trimming,buffing pneumatic end cutting | gluing,trimming,buffing pneumatic end cutting | gluing,trimming,buffing pneumatic end cutting | gluing,trimming,buffing, end cutting |
