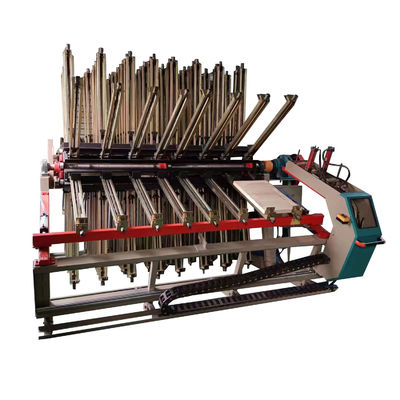

1300mm Wood Based Panels Pneumatic Control Rotary Wood Clamp Carrier Machine MY2600A-8
Product Details:
| Place of Origin: | Shandong, China |
| Brand Name: | PHOENIX MACHINERY |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 set |
|---|---|
| Price: | $7,050.00/sets >=1 sets |
|
Detail Information |
|||
| Condition: | New | Type: | Hydraulic Clamp Carrier |
|---|---|---|---|
| Dimension(L*W*H): | 4800*3900*3700mm | Power (kW): | 4kw |
| Weight (KG): | 2400 Kg | Applicable Industries: | Building Material Shops, Manufacturing Plant, Construction Works , Other, Advertising Company |
| Warranty: | 1 Year | Key Selling Points: | High Productivity |
| Video Outgoing-inspection: | Provided | Warranty Of Core Components: | 1 Year |
| Core Components: | Engine | Use: | Splicing Into Wooden Boards |
| Name: | Wood Composer Clamp Carrier | Product Name: | Wooden Door Hydraulic Clamp Carrier Composer Making Machine |
| Usage: | Panel Furniture | Max. Working Length: | 2600mm |
| Max. Working Width: | 1300mm | Max. Working Thickness: | 10-100mm |
| Section Quantity: | 8 | Clamps Quantity Per Section: | 8 |
| Rotating Motor Power: | 1.1kw | Pressure: | 0.6~0.8Mpa |
Product Description
Products Description
Specification
Model | MY2600A-8 | MY2600A-10 | MY2600A-14 | MY2600A-16 | MY2600A-20 |
Max. Working Length | 2600mm | 2600mm | 2600mm | 2600mm | 2600mm |
Max. Working Width | 1300mm | 1300mm | 1300mm | 1300mm | 1300mm |
Max. Working Thickness | 10-100mm | 10-100mm | 10-100mm | 10-100mm | 10-100mm |
Section quantity | 8 | 10 | 14 | 16 | 20 |
Clamps quantity per section | 8 | 8 | 8 | 8 | 8 |
Oil station motor power | 4kw | 4kw | 4kw | 4kw | 4kw |
Rotating motor power | 1.1kw | 1.1kw | 1.5kw | 1.5kw | 1.5kw |
Pressure | 0.6~0.8Mpa | 0.6~0.8Mpa | 0.6~0.8Mpa | 0.6~0.8Mpa | 0.6~0.8Mpa |
Packing Delivery
1. Outside package: Standard marine export plywood cases.
2. Inner package: Stretch film and plastic film for humidity.
We can package according to your requests
Product Name | Hydraulic Clamp Carrier Composer |
Brand | PHOENIX EQUIPMENT |
Customized | color, logo, voltage |
MOQ | 1 set |
Package | plywood wooden box |
Payment terms | Alibaba Trade Assurance, T/T, Alipay |
Usage | It splices small boards which have been processed and treated in advance into the big board |
