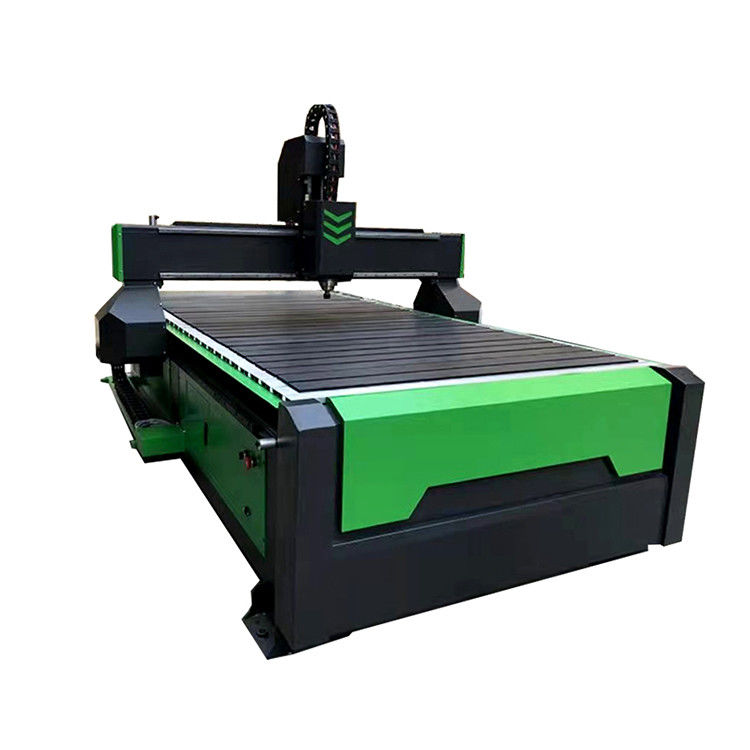

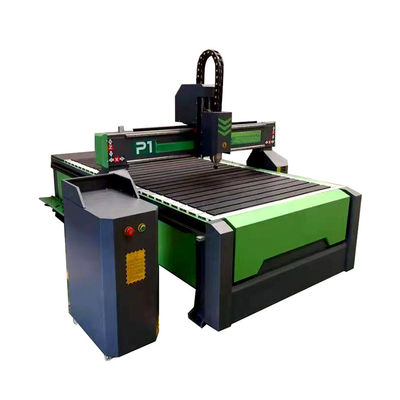

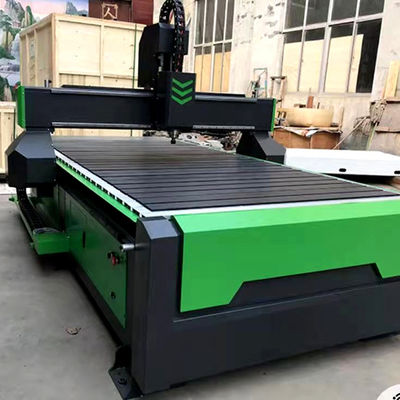

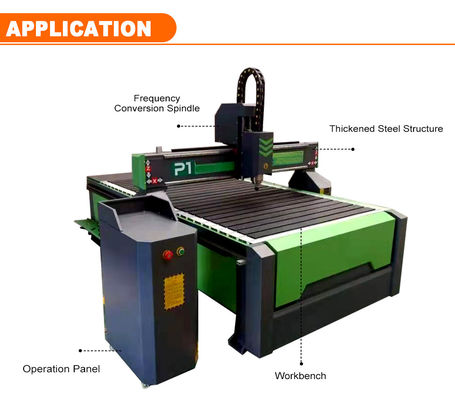

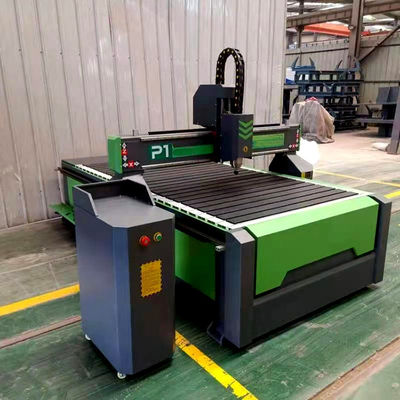

1325 Acrylic MDF Engraving Carving Cutting Router CNC Machine with T-Slot Extrusions
Product Details:
| Place of Origin: | Shandong, China |
| Brand Name: | Phoenix |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 set |
|---|---|
| Price: | $3,000.00/acres 1-4 acres |
| Packaging Details: | 1. Outside package: Standard marine export plywood cases. <br>2. Inner package: Stretch film and plastic film for humidity. <br>We can package according to your requests<br>Port<br>Qingdao port |
| Supply Ability: | 100 Acre/Acres per Month |
|
Detail Information |
|||
| Condition: | New | Range Of Spindle Speed(r.p.m): | 0 - 24000 Rpm |
|---|---|---|---|
| Positioning Accuracy (mm): | 0.05 Mm | Number Of Axes: | 3 |
| No. Of Spindles: | Single | Working Table Size(mm): | 1300×2500 |
| Machine Type: | CNC Router | Travel (X Axis)(mm): | 1300 Mm |
| Travel (Y Axis)(mm): | 2500 Mm | Repeatability (X/Y/Z) (mm): | 0.02 Mm |
| Spindle Motor Power(kW): | 3/4.5/6/9 | CNC Or Not: | CNC |
| Voltage: | 220/380/415V Or Customized | Dimension(L*W*H): | 3130*2060*1650mm |
| Power (kW): | 6 | Weight (KG): | 1200 |
| Control System Brand: | DSP | Warranty: | 1 Year |
| Key Selling Points: | High-accuracy | Applicable Industries: | Hotels, Building Material Shops, Machinery Repair Shops, Other |
| Machinery Test Report: | Provided | Video Outgoing-inspection: | Provided |
| Warranty Of Core Components: | 1 Year | Core Components: | Motor, Pump, PLC, Engine |
| Z Working Area: | 200mm | Table Surface:: | Vacuum Table & T-slot Extrusions |
| Drive Motor: | Stepper Motor&Leadshine Driver | Max. Working Speed: | 25000mm/min |
| Spindle Power Motor:: | 3.5kw/4.5kw Air-colling Spindle/ 3.2 Water Cooling Spindle | Working Area: | 1300*2500*200mm |
| Auto Oil Lubrication: | Auto Oil Lubrication | Port: | We Can Package According To Your Requests Port Qingdao Port |
Product Description
wood cnc router
