64kW Water Type Abrasive Belt Sanding Machine for Stainless Steel Sheet Polishing
Product Details:
| Place of Origin: | Shandong, China |
| Brand Name: | Phoenix |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 set |
|---|---|
| Price: | $5,460.00/acres 1-2 acres |
| Packaging Details: | 1. Outside package: Standard marine export plywood cases. <br>2. Inner package: Stretch film and plastic film for humidity. <br>We can package according to your requests<br>Port<br>Qingdao port |
| Supply Ability: | 100 Acre/Acres per Month |
|
Detail Information |
|||
| Condition: | New | Machine Type: | Wood Sanding Machine |
|---|---|---|---|
| Video Outgoing-inspection: | Provided | Machinery Test Report: | Provided |
| Marketing Type: | Ordinary Product | Warranty Of Core Components: | 1 Year |
| Core Components: | PLC, Engine, Gearbox, Motor, Pressure Vessel, Gear, Pump | Warranty: | 1 Year |
| Weight (KG): | 3500 KG | Power (kW): | 64 |
| Key Selling Points: | Automatic | Showroom Location: | United Kingdom, United States, Italy, France, Germany |
| Applicable Industries: | Hotels, Garment Shops, Building Material Shops, Machinery Repair Shops, Manufacturing Plant, Farms, Restaurant, Home Use, Construction Works , Other, Advertising Company | Style: | R-RP1000 |
| Port: | We Can Package According To Your Requests Port Qingdao Port | ||
Product Description

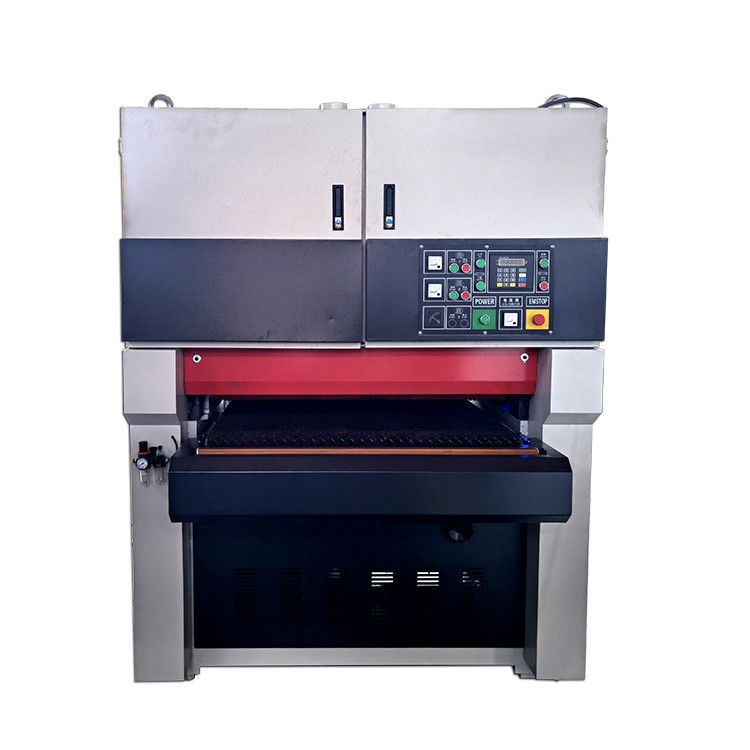

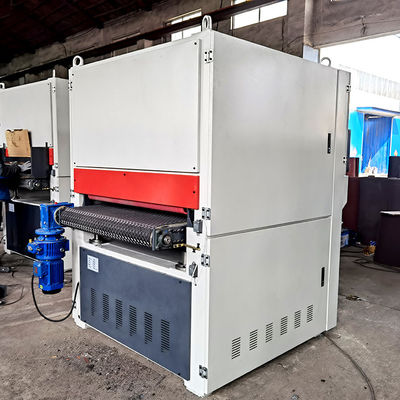

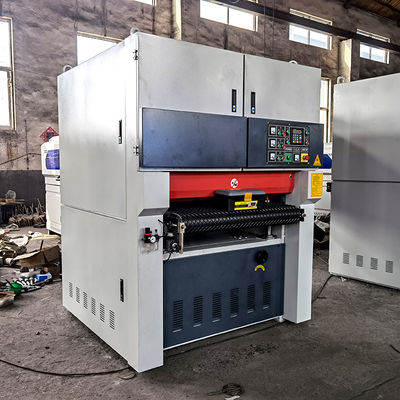

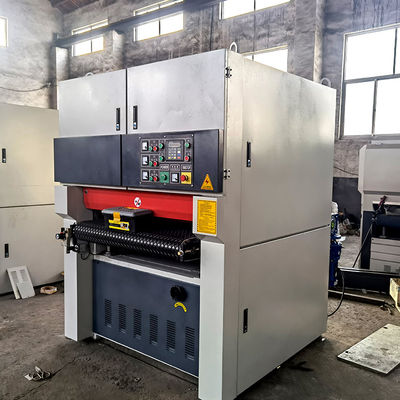

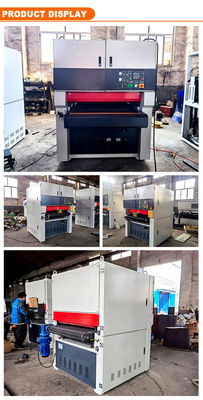

1000MM metal stainless steel sheet sanding machine water type abrasive belt sanding machine sander flat polishing machine
Technical Parameter
| Working width | 450,630,1000,1300,1600mm | First motor | 5.5, 11, 22, 37, 45kw |
| Min.Working length | 500mm | Second motor | 5.5, 7.5, 15, 22, 30kw |
| Working thickness | 3-160mm | Third motor | 11, 22kw |
| Feeding speed | 6-30m/min | Feeding motor | 0.75, 1.5, 4.5kw |
| First roller | 190, 240mm | Lifting motor | 0.37, 0.55kw |
| Second roller | 190, 240mm | Working air | 0.6Mpa |
| Third roller | 210mm | Volume of dust | 8000, 9600, 14000m³/h |
| Abrasive belt size | 470*1930, 650*1930, 1020*2020, 1320*2220mm, 1620*2220mm | ||
| Overall dimensions | 1800*950*2100, 2700*2100*2100, 3000*2400*2100mm | ||
| Weight | 1100, 2000, 3000, 5300, 6500kg | ||
