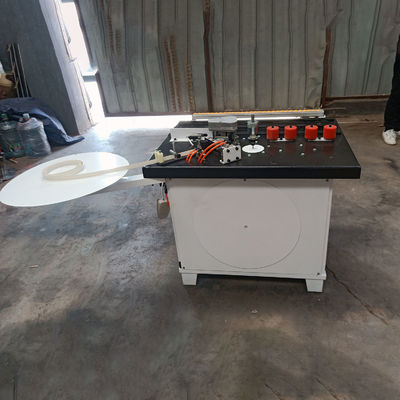

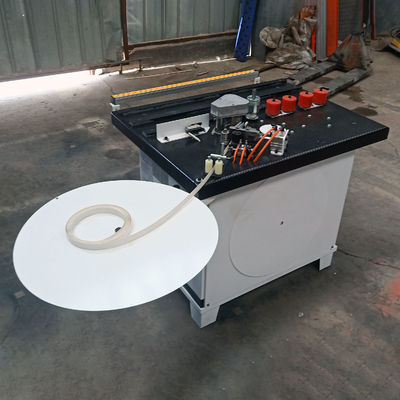

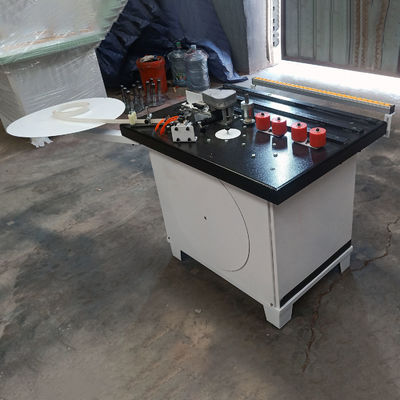

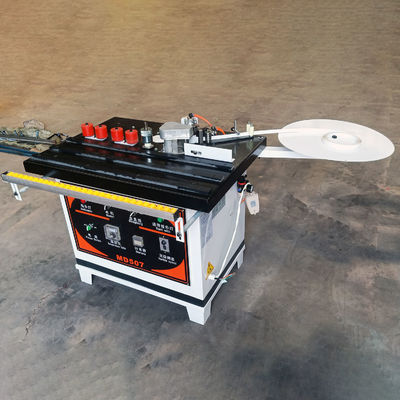

Effective Cutting Width 50mm Curve Straight Portable Woodworking Edge Banding Machine
Product Details:
| Place of Origin: | Shandong, China |
| Brand Name: | Phoenix |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 set |
|---|---|
| Price: | $650.00/acres 1-5 acres |
|
Detail Information |
|||
| Condition: | New | Machine Type: | Edge Banding Machine |
|---|---|---|---|
| Video Outgoing-inspection: | Provided | Machinery Test Report: | Provided |
| Marketing Type: | Hot Product 2022 | Warranty Of Core Components: | 1 Year |
| Core Components: | PLC, Engine, Bearing, Gearbox, Motor, Pressure Vessel, Gear, Pump | Warranty: | 1 Year |
| Weight (KG): | 100 KG | Power (kW): | 1.8 |
| Key Selling Points: | High Productivity | Showroom Location: | United Kingdom, United States, Italy, France, Germany |
| Applicable Industries: | Hotels, Garment Shops, Building Material Shops, Machinery Repair Shops, Manufacturing Plant, Other | Type: | Curve And Straight Line Dual-purpose |
| Banding Tape Thickness: | 0.3-3 Mm | Banding Tape Width: | 15-50 Mm |
| Effective Cutting Width: | 50 Mm | Feeding Speed: | 0-14m/min |
| Minimum Arc Radius: | 20mm | Air Pressure: | 0.6 Mpa |
| Heating Power: | 1600W | Motor Power: | 180W |
Product Description
Products Description
Specification

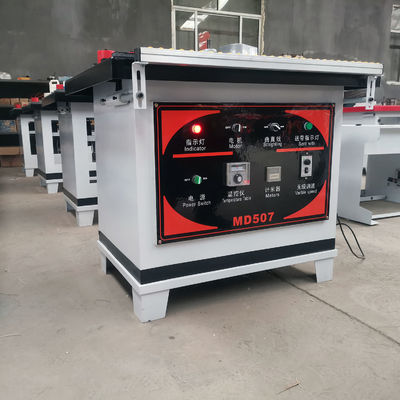

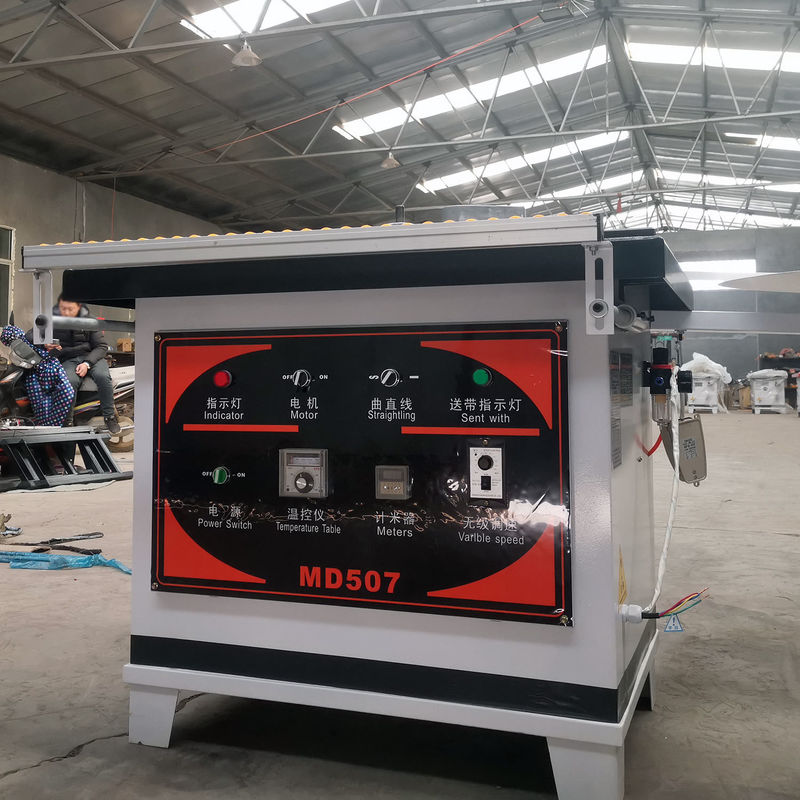

Model | MD507 |
Banding tape thickness | 0.3-3 mm |
Banding tape width | 15-50 mm |
Effective cutting width | 50 mm |
Feeding speed | 0-14m/min |
Minimum arc radius | 20mm |
heating power | 1600W |
Motor power | 180W |
Air pressure | 0.6 Mpa |
Overall dimension | 1000x790x800 mm |
Weight | 160 KGS |
Packing Delivery
1. Outside package: Standard marine export plywood cases.
2. Inner package: Stretch film and plastic film for humidity.
We can package according to your requests
Product Name | Curve and straight edge banding machine |
Brand | PHOENIX EQUIPMENT |
Customized | color, logo, voltage |
MOQ | 1 set |
Package | plywood wooden box |
Payment terms | Alibaba Trade Assurance, T/T, Alipay |
Usage | plywood,fiber board,partical board edge banding. |
