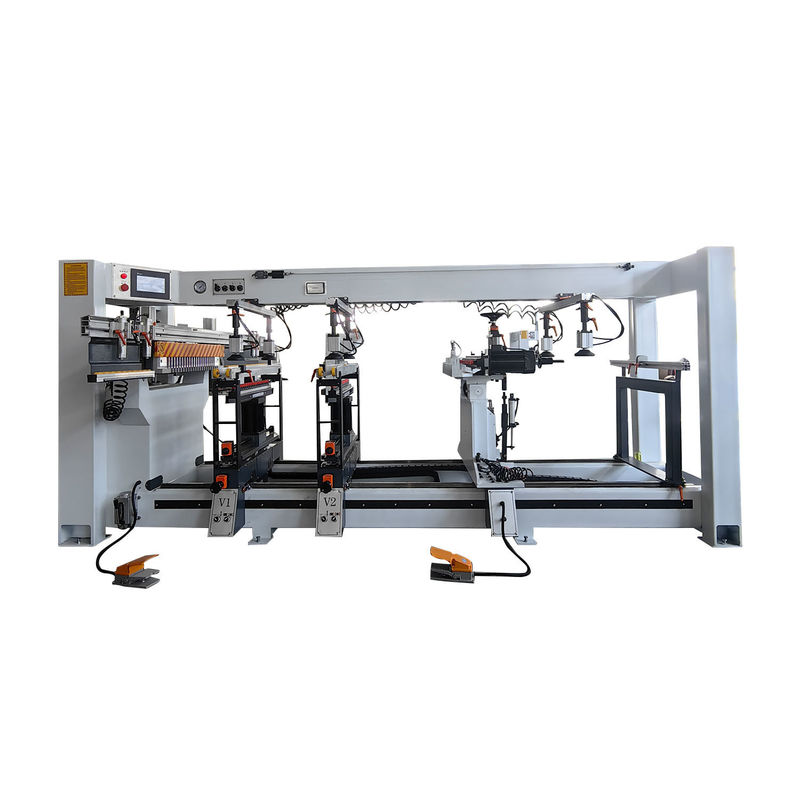

Four Line Multi-Spindle Wood Hole Drilling Machine with Table Drill Function MZB73214
Product Details:
| Place of Origin: | Shandong, China |
| Brand Name: | PHOENIX EQUIPMENT |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 set |
|---|---|
| Price: | $6,150.00/sets >=1 sets |
|
Detail Information |
|||
| CNC Or Not: | Normal | Condition: | New |
|---|---|---|---|
| Line Number: | Four | Video Outgoing-inspection: | Provided |
| Machinery Test Report: | Provided | Marketing Type: | New Product 2024 |
| Warranty Of Core Components: | 1 Year | Core Components: | PLC, Engine, Bearing, Motor |
| Voltage: | 380V 50HZ (Customized Voltage) | Dimension(L*W*H): | 3500*2500*1550mm |
| Warranty: | 1 Year | Weight (KG): | 1200 KG |
| Power (kW): | 1.5kw * 4 | Key Selling Points: | High-accuracy |
| Applicable Industries: | Hotels, Building Material Shops, Machinery Repair Shops, Other, Furniture Factory | Showroom Location: | United States, Italy, France, Germany, Viet Nam |
| Product Name: | 4 Line Drilling Machine | Function: | Table Drill Bench Drill Press |
| Vertical Machining Holes Distance: | 140-2550mm | Number Of Auger Spindle: | 21 Bits * 4lines |
| Maximum Drilling Depth: | 60mm | Air Pressure: | 0.6-0.8MPa |
| Packing Size: | 3600*1220*1700mm | Installation Size: | 3500*2500*1550mm |
| Min Center Distance Between Spindles: | 32mm | ||
Product Description
Products Description
Specification
Model | MZB73214 |
Maximum Drilling Diameter | Max.=35mm(Single drilling) D=13mm(Multiple drilling) |
Maximum Drilling Depth | 60mm |
Vertical machining holes distance | 140-2550mm |
Number of auger spindle | 21 bits * 4lines |
Spindle speed | 2840r/min |
Installed power | 1.5kw * 4 |
Air pressure | 0.6-0.8MPa |
Suitable voltage | 380V 50HZ (Customized voltage) |
Min center distance between spindles | 32mm |
Net weight | 1200KG |
Installation size | 3500*2500*1550mm |
Packing Size | 3600*1220*1700mm |
Packing Delivery
1. Outside package: Standard marine export plywood cases.
2. Inner package: Stretch film and plastic film for humidity.
We can package according to your requests
Product Name | Woodworking 4 Rows Boring Machine For Furniture Vertical Horizontal Drilling |
Brand | PHOENIX EQUIPMENT |
Customized | color, logo, voltage |
MOQ | 1 set |
Package | plywood wooden box |
Payment terms | Alibaba Trade Assurance, T/T, Alipay |
Usage | Suitable for all kinds of density boards, particleboard, based panels,PVC panels, organic glass plates and solid wood boards such as the drill |
