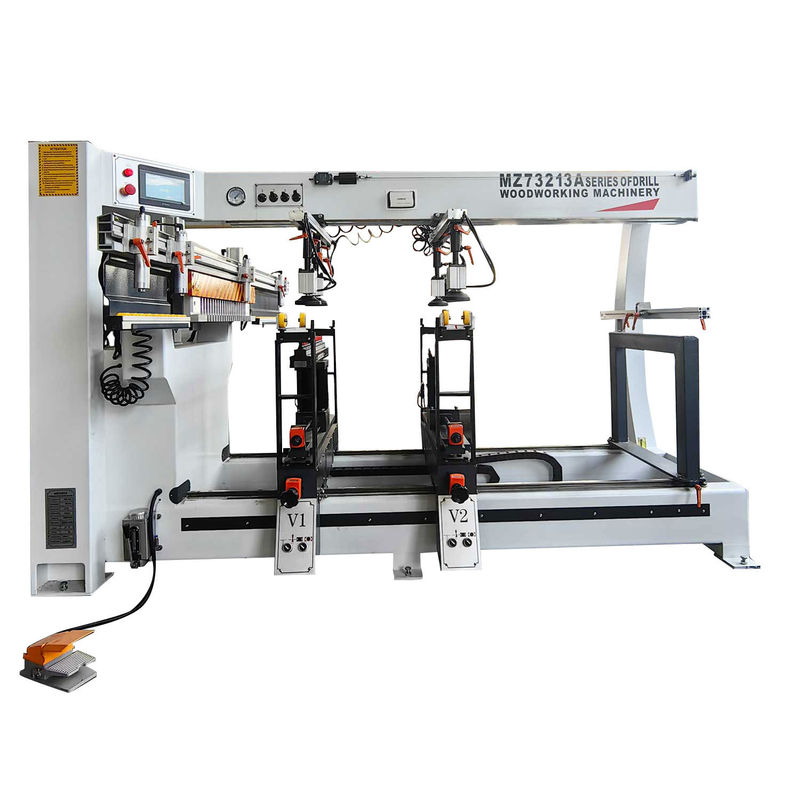

accuracy MZ73213A Wood Furniture Multi Axis Boring Machine Three Rows Drilling Machine
Product Details:
| Place of Origin: | Shandong, China |
| Brand Name: | PHOENIX EQUIPMENT |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 set |
|---|---|
| Price: | $4,380.00/sets 1-5 sets |
|
Detail Information |
|||
| CNC Or Not: | Normal | Condition: | New |
|---|---|---|---|
| Line Number: | Three | Video Outgoing-inspection: | Provided |
| Machinery Test Report: | Provided | Marketing Type: | New Product 2024 |
| Warranty Of Core Components: | 1 Year | Core Components: | PLC, Engine, Bearing, Motor |
| Voltage: | 380V 50HZ (Customized Voltage) | Dimension(L*W*H): | 2600*2500*1600mm |
| Warranty: | 1 Year | Weight (KG): | 900 KG |
| Power (kW): | 1.5kw * 3 | Key Selling Points: | High-accuracy |
| Applicable Industries: | Hotels, Building Material Shops, Machinery Repair Shops, Other, Furniture Factory | Showroom Location: | United States, Italy, France, Germany, Viet Nam |
| Product Name: | Multispindle Boring Machine | Function: | Table Drill Bench Drill Press |
| Max Drill Diameter: | 60mm | Vertical Machining Holes Distance: | 140-1700mm |
| Number Of Auger Spindle: | 21 Bits * 3lines | Maximum Drilling Depth: | 60mm |
| Air Pressure: | 0.6-0.8MPa | Packing Size: | 2700*1220*1700mm |
| Installation Size: | 2600*2500*1600mm | ||
Product Description
Products Description
Specification
Model | MZ73213A |
Maximum Drilling Diameter | Max.=35mm(Single drilling) D=13mm(Multiple drilling) |
Max Drill Diameter | 60mm |
Vertical machining holes distance | 140-1700mm |
Number of auger spindle | 21 bits * 3lines |
Maximum Drilling Depth | 60mm |
Rotational Speed | 2840r/min |
Motor power | 1.5kw * 3 |
Air Pressure | 0.6-0.8MPa |
Suitable voltage | 380V 50HZ (Customized voltage) |
Weight | 900kg |
Installation size | 2600*2500*1600mm |
Packing Size | 2700*1220*1700mm |
Packing Delivery
1. Outside package: Standard marine export plywood cases.
2. Inner package: Stretch film and plastic film for humidity.
We can package according to your requests
Product Name | Wood Furniture Multi Axis Boring Machine Three Rows Drilling Machine |
Brand | PHOENIX EQUIPMENT |
Customized | color, logo, voltage |
MOQ | 1 set |
Package | plywood wooden box |
Payment terms | Alibaba Trade Assurance, T/T, Alipay |
Usage | Suitable for all kinds of density boards, particleboard, based panels,PVC panels, organic glass plates and solid wood boards such as the drill |
