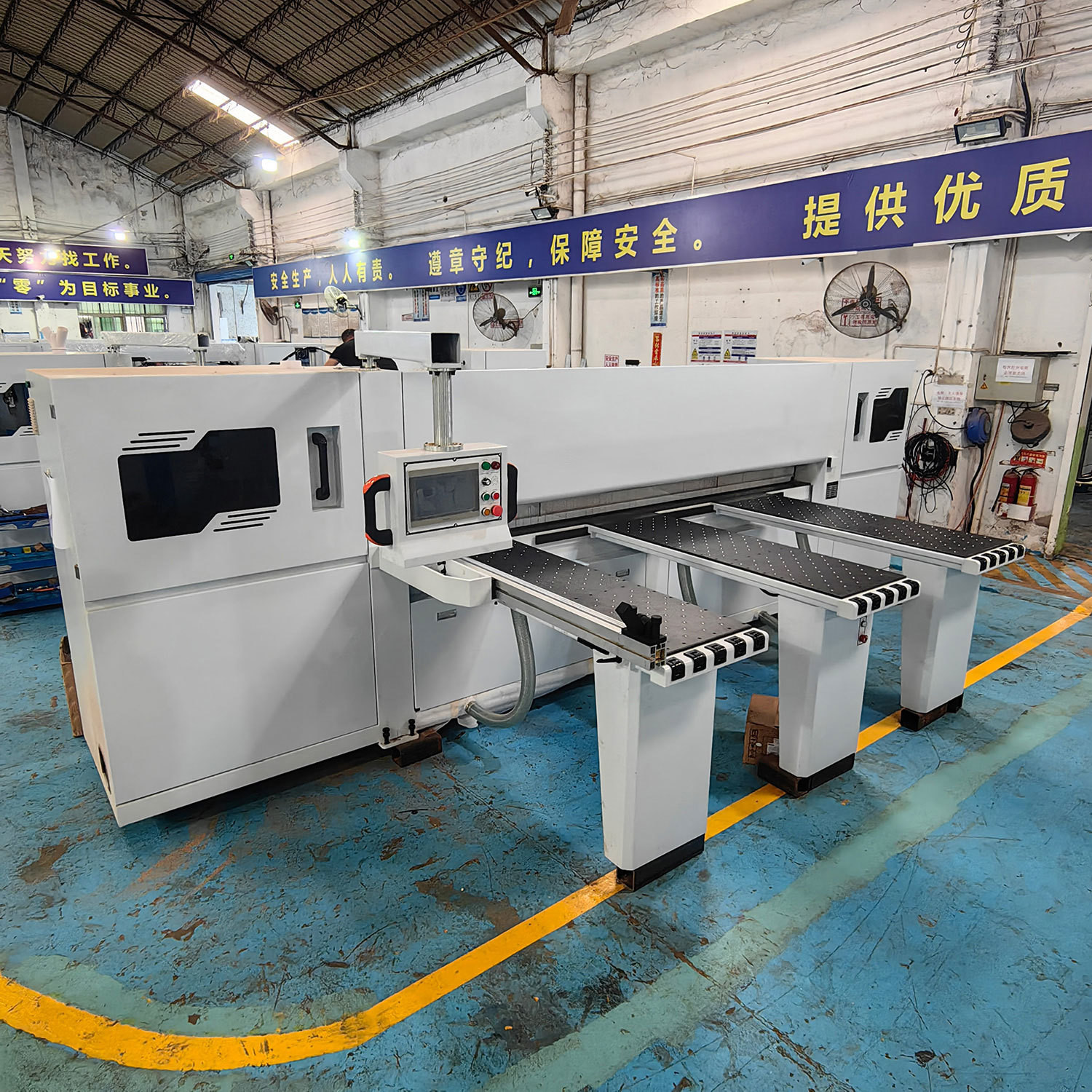

High Speed Beam Saw CNC Woodworking Table MJ6228B with 4800rpm Main Saw Shaft Speed
Product Details:
| Place of Origin: | Shandong, China |
| Brand Name: | PHOENIX EQUIPMENT |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 set |
|---|---|
| Price: | $11,500.00/sets 1-5 sets |
|
Detail Information |
|||
| Condition: | New | Type: | Beam Saw |
|---|---|---|---|
| Use: | Woodworking, Wood Cutting | Style: | Horizontal |
| Dimension(L*W*H): | 5300*3350*1900mm | Warranty: | 1 Year |
| Application: | Woodworking, Woodworking | Weight (KG): | 3800 KG |
| Power (kW): | 16.5kw | Key Selling Points: | Automatic |
| Applicable Industries: | Hotels, Garment Shops, Building Material Shops, Machinery Repair Shops, Manufacturing Plant, Food & Beverage Factory, Farms, Restaurant, Home Use, Retail, Food Shop, Construction Works , Energy & Mining, Food & Beverage Shops, Other, Advertising Company | Marketing Type: | Hot Product 2023 |
| Machinery Test Report: | Provided | Video Outgoing-inspection: | Provided |
| Warranty Of Core Components: | 1 Year | Core Components: | Motor |
| Name: | Automatic Computer Panel Saw | Function: | Cutting |
| Keywords: | Automatic | Length Of Saw Cut: | 2700mm |
| Height Of Saw Cut: | 100mm | Workbench Height: | 950mm |
| Main Saw Blade Diameter: | 360mm | Main Saw Shaft Diameter: | 80mm |
| Main Saw Shaft Speed: | 4800rpm | ||
Product Description
Products Description
Specification
Model | MJ6228B |
IPC | Touch Screen |
Width of saw cut | 2700mm |
Height of saw cut | 100mm |
Main saw blade diameter | Ф360mm |
Main saw shaft diameter | Ф80mm |
Main saw shaft speed | 4800rpm |
Scoring saw blade diameter | Ф180mm |
Scoring saw shaft diameter | Ф55mm |
Scoring saw shaft speed | 6900rpm |
Saw carriage forward speed adjustable | 100m/min |
Saw carriage backward speed adjustable | 120m/min |
Main saw motor | 16.5kw |
Scoring saw motor | 2.2kw |

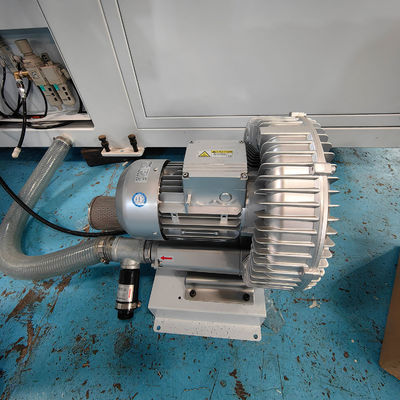

High pressure fan motor | 4kw |
Traction motor power (rack drive) | 1.5kw |
Total power | 24.2kw |
Air pressure | 5-7kg/cm² |
Workbench height | 950mm |
Machine size (L*W*H) | 5300*3350*1900mm |
Packing Delivery
1. Outside package: Standard marine export plywood cases.
2. Inner package: Stretch film and plastic film for humidity.
We can package according to your requests
Product Name | automatic cnc wood precision panel saw machine single-blade beam saws wood base panel cnc saw machine |
Brand | PHOENIX EQUIPMENT |
Customized | color, logo, voltage |
MOQ | 1 set |
Package | plywood wooden box |
Payment terms | Alibaba Trade Assurance, T/T, Alipay |
Usage | Apply to processing all kinds of density boards, shaving boards, wood-based panels, ABS panels, PVC panels, organic glass plates and solid wood and others with wood structure and similar hardness. |
