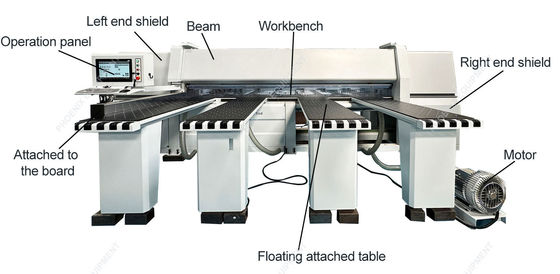

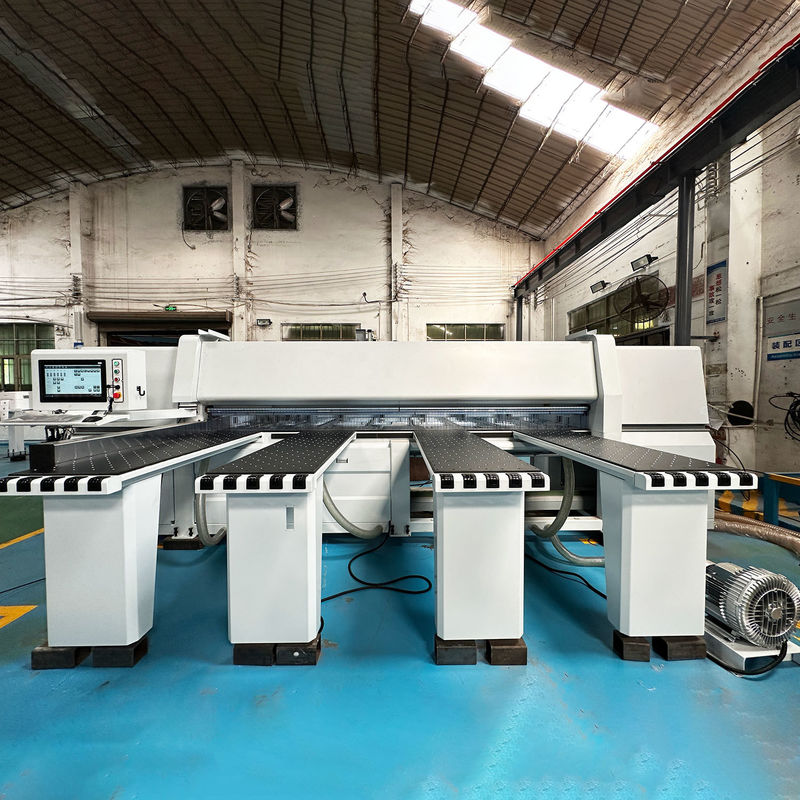

Panel Cutting Woodworking CNC Beam Saw Machine with Automatic Precision Function
Product Details:
| Place of Origin: | Shandong, China |
| Brand Name: | PHOENIX EQUIPMENT |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 set |
|---|---|
| Price: | $33,000.00/sets 1-1 sets |
|
Detail Information |
|||
| Condition: | New | Type: | Automatic Panel Saw |
|---|---|---|---|
| Use: | Woodworking, Wood Cutting | Style: | Horizontal |
| Voltage: | Customized | Dimension(L*W*H): | 6300x7500x1900mm |
| Warranty: | 1 Year | Application: | Furniture Industry, Woodworking |
| Weight (KG): | 6300 KG | Power (kW): | 30.5kw |
| Key Selling Points: | Automatic | Applicable Industries: | Building Material Shops, Machinery Repair Shops, Manufacturing Plant, Farms, Home Use |
| Marketing Type: | New Product 2023 | Machinery Test Report: | Provided |
| Video Outgoing-inspection: | Provided | Warranty Of Core Components: | 1 Year |
| Core Components: | Motor | Name: | Computer Panel Saw Machine |
| Product Name: | Electronic Cutting Panel Saw | Keywords: | Automatic |
| Function: | Precision CNC Beam Saw | Max. Cutting Length: | 3800mm |
| Max. Cutting Thickness: | 120mm | Main Saw Rotating Speed: | 4100rpm |
| Saw Carriage Forward Speed Adjustable: | 0-100m/min | Saw Carriage Backward Speed Adjustable: | 0-120m/min |
| Automatic Feeding Speed: | 100m/min | ||
Product Description
Products Description
Specification
Model | MJ6228A | MJ6233A | MJ6238A |
Max. cutting length | 2800mm | 3300mm | 3800mm |
Max. cutting thickness | 120mm | 120mm | 120mm |

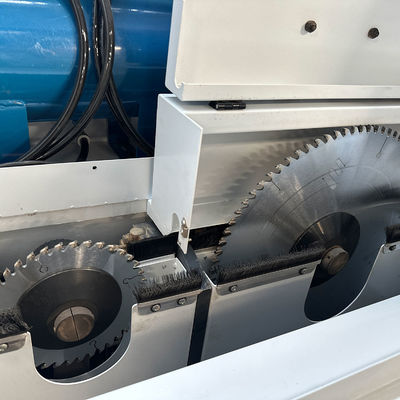

Main saw blade diameter | Φ450mm | Φ450mm | Φ450mm |
Main saw shaft diameter | Φ75mm | Φ75mm | Φ75mm |
Main saw rotating speed | 4100rpm | 4100rpm | 4100rpm |
Scoring saw blade diameter | Φ210mm | Φ210mm | Φ210mm |
Scoring saw blade inner diameter | Φ50mm | Φ50mm | Φ50mm |
Scoring saw rotating speed | 6100rpm | 6100rpm | 6100rpm |
Saw carriage forward speed adjustable | 0-100m/min | 0-100m/min | 0-100m/min |
Saw carriage backward speed adjustable | 0-120m/min | 0-120m/min | 0-120m/min |
Main saw motor | 18.5kw | 18.5kw | 18.5kw |
Scoring saw motor | 2.2kw | 2.2kw | 2.2kw |
Saw carriage driving motor | 1.8kw (AC Servo motor) | 1.8kw (AC Servo motor) | 1.8kw (AC Servo motor) |
Automatic feeding motor | 1.8kw (AC Servo motor) | 1.8kw (AC Servo motor) | 1.8kw (AC Servo motor) |
High pressure fan motor (*2) | 4kw、2.2kw | 4kw、2.2kw | 4kw、2.2kw |
Total power | 30.5kw | 30.5kw | 30.5kw |
Automatic feeding speed | 100m/min | 100m/min | 100m/min |

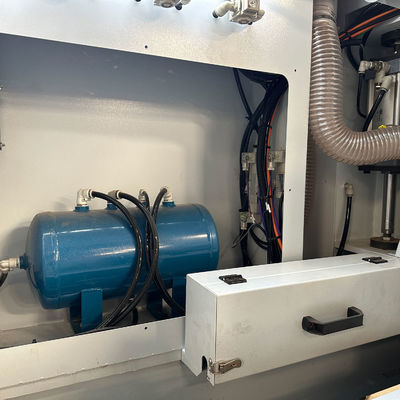

Air pressure | 5-8kg/cm² | 5-8kg/cm² | 5-8kg/cm² |

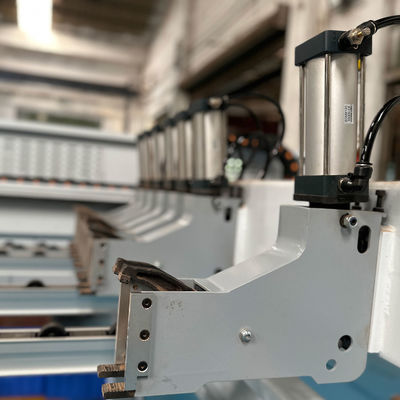

Mechanical gripper | 9 | 9 | 10 |
Working table height from ground level | 960mm | 960mm | 960mm |
Overall dimension | 5100x6300x1900mm | 5600x6800x1900mm | 6300x7500x1900mm |
Packing Delivery
1. Outside package: Standard marine export plywood cases.
2. Inner package: Stretch film and plastic film for humidity.
We can package according to your requests
Product Name | cnc beam saw |
Brand | PHOENIX EQUIPMENT |
Customized | color, logo, voltage |
MOQ | 1 set |
Package | plywood wooden box |
Payment terms | Alibaba Trade Assurance, T/T, Alipay |
Usage | Apply to processing all kinds of density boards, shaving boards, wood-based panels, ABS panels, PVC panels, organic glass plates and solid wood and others with wood structure and similar hardness. |
