Horizontal Style CNC Panel Saw Machine for Wood Door Processing and Cutting Plywood
Product Details:
| Place of Origin: | Shandong, China |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 set |
|---|---|
| Price: | $8,500.00/acres 1-2 acres |
| Packaging Details: | 1. Outside package: Standard marine export plywood cases. <br>2. Inner package: Stretch film and plastic film for humidity. <br>We can package according to your requests<br>Port<br>Qingdao port |
| Supply Ability: | 100 Acre/Acres per Month |
|
Detail Information |
|||
| Condition: | New | Type: | CNC Beam Saw |
|---|---|---|---|
| Use: | Woodworking, WOOD WORKING | Style: | Horizontal |
| Voltage: | 380;220;415 | Dimension(L*W*H): | 5200mm*3900mm*1700mm |
| Warranty: | 1 Year | Application: | Wood Cutting, Wood Door Processing |
| Weight (KG): | 3000 KG | Power (kW): | 15 |
| Key Selling Points: | High-accuracy | Applicable Industries: | Hotels, Garment Shops, Building Material Shops, Other, Garment Shops, Building Material Shops, Machinery |
| Marketing Type: | New Product 2020 | Machinery Test Report: | Provided |
| Video Outgoing-inspection: | Provided | Warranty Of Core Components: | 1 Year |
| Core Components: | Motor | Port: | We Can Package According To Your Requests Port Qingdao Port |
Product Description

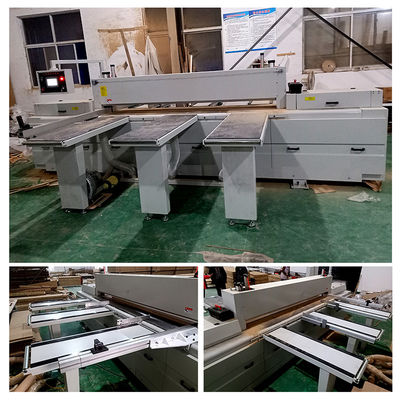

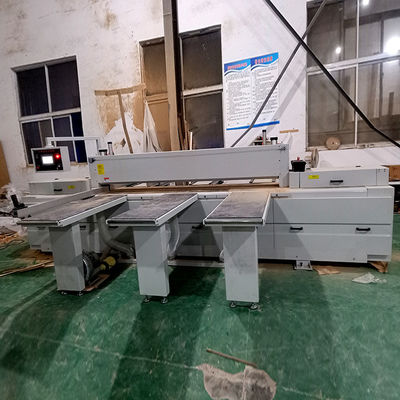

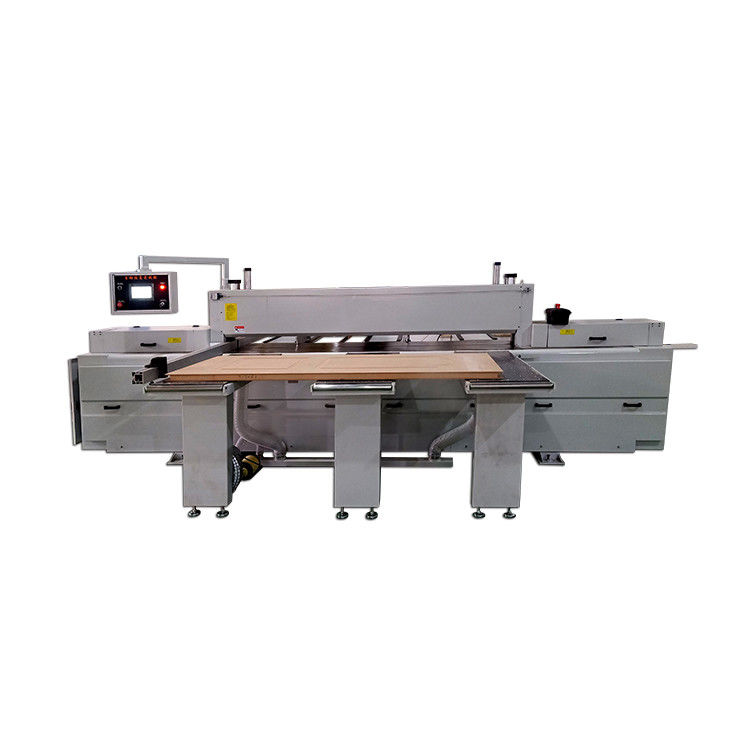

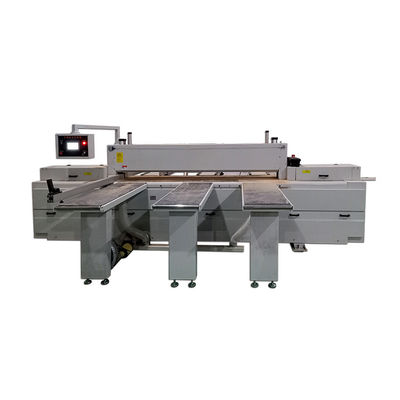

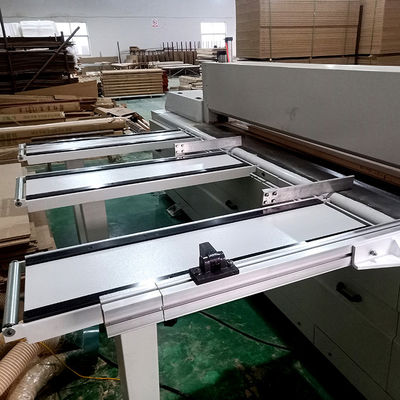

CNC beam saw
Product Description
Technical Paramaters:
| Model | MJF2700/3300 Beam Saw | |||
| Saw length | 2700mm/3300mm | Saw carriage forward speed | 0-120m/min | |
| Saw thickness | 75mm/100mm/120mm | Saw carriage back speed | 60-120m/min | |
| Saw blade diameter | 355mm/400mm/460mm | Head saw motor | 7.5kw/11kw/18kw | |
| Axis main saw blade diameter | 30mm/60mm | Grooving saw motor | 1.5kw | |
| Main saw blade speed | 3950rpm/4500rpm | Saw drive serve motor | 1.5kw | |
| Grooving saw blade diameter | 180mm | Automatic feeding motor | 1.5kw | |
| Axis grooving saw blade diameter | 30mm | High pressure blower motor | 2.2kw | |
| Grooving saw blade speed | 5400rpm | Operation pressure | 5-7kg/cm | |
| Weight | 3000kg/4000kg | Workbench height | 950mm | |
| Dimensions | 5200mm*3900mm*1700mm / 5800mm*3900mm*1700mm | |||
