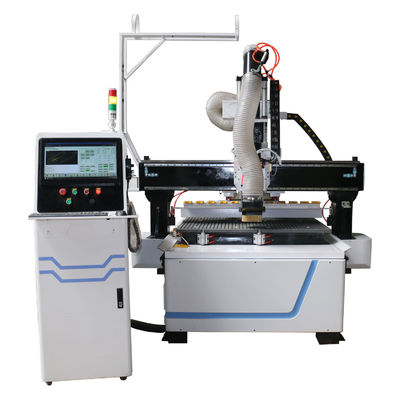

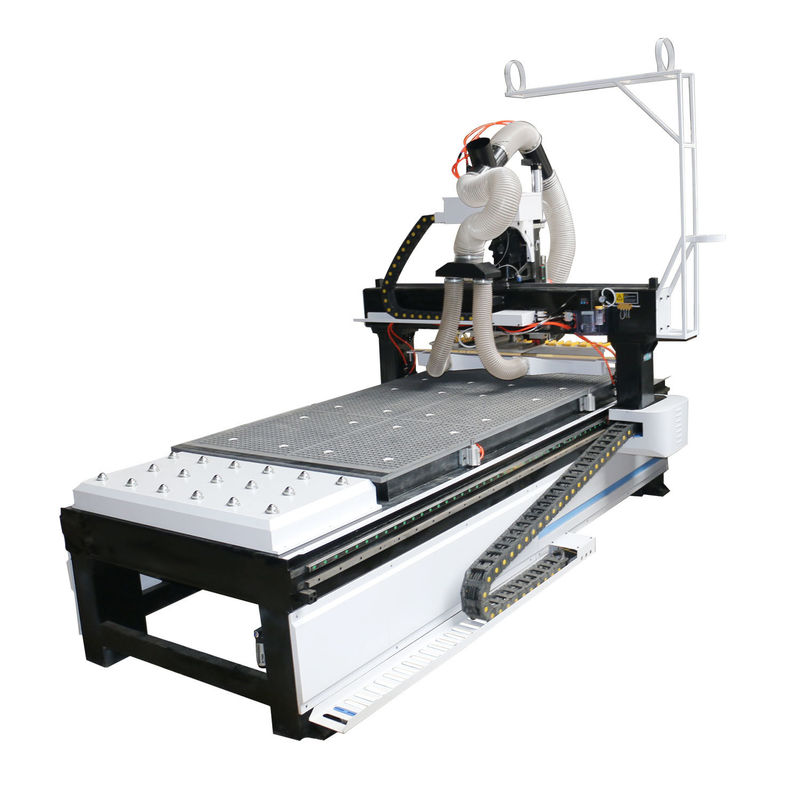

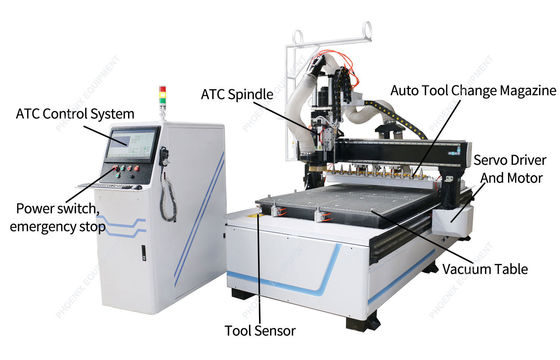

Auto Tool Change PM1325 ATC Woodworking KT Board Cutting CNC Router Machine for Farms
Product Details:
| Place of Origin: | Shandong, China |
| Brand Name: | Phoenix Equipment |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 set |
|---|---|
| Price: | $10,600.00/sets 1-4 sets |
|
Detail Information |
|||
| Condition: | New | Range Of Spindle Speed(r.p.m): | 15000 - 30000 Rpm |
|---|---|---|---|
| Positioning Accuracy (mm): | 0.02 Mm | Number Of Axes: | 3 |
| No. Of Spindles: | ATC | Working Table Size(mm): | 1260*2480mm |
| Machine Type: | CNC Router | Travel (X Axis)(mm): | 1300 Mm |
| Travel (Y Axis)(mm): | 2500 Mm | Repeatability (X/Y/Z) (mm): | 0.02 Mm |
| Spindle Motor Power(kW): | 9kw | CNC Or Not: | CNC |
| Voltage: | 380V,3PH 60Hz | Dimension(L*W*H): | 3700*2300*2200mm |
| Weight (KG): | 2000 | Control System Brand: | Syntec |
| Warranty: | 1 Year | Key Selling Points: | Multifunctional |
| Applicable Industries: | Building Material Shops, Machinery Repair Shops, Manufacturing Plant, Farms, Construction Works | Machinery Test Report: | Provided |
| Video Outgoing-inspection: | Provided | Warranty Of Core Components: | 1 Year |
| Core Components: | Motor | Name: | PM1325 ATC CNC Router |
| Product Name: | 3 Axis Wood Router Machine | Application: | Kitchen Cabinet Doors Furnitures Making |
| Keywords: | Cnc Wood Router Engraver | Knife Library: | Straight Line 12 Follow Knife Library |
| Run Command: | G-code | Total Weight: | 2.5T |
| Packing: | Outside Wood Packing | Countertop Structure Size: | Vacuum Adsorption Countertop:1260*2480 24holes |
| Bed Structure: | Heavy Bed Structure | ||
Product Description
Products Description
Specification
Model | PM1325 ATC |
Voltage | 380V,3PH 60Hz |
Max empty travel speed | XY.50000mm/min Z:20000mm/min |
Working Speed | 15000-30000mm/min |

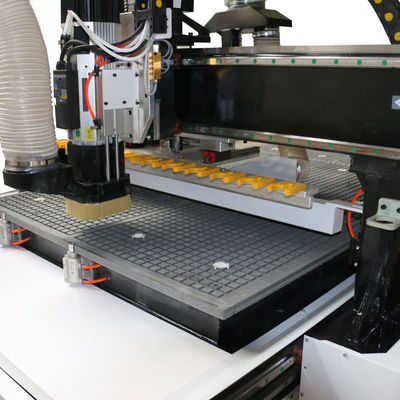

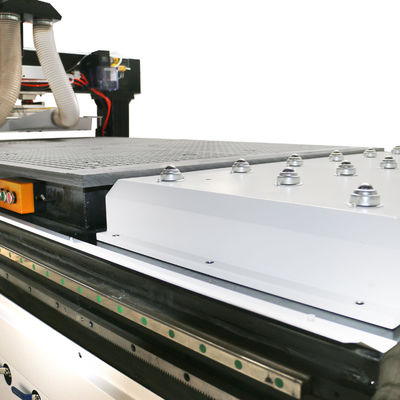

Countertop structure size | Vacuum Adsorption Countertop:1260*2480 24holes |
Bed structure | Heavy Bed Structure |
Transmission | Guide ;25 Square rail |
Rack: High precision 1.5M Helical gear | |
Reducer: Japan Shimpo | |
Screw: Taiwan TBI | |
Knife Library | Straight line 12 follow knife library |
Inverter | Tetran 11KW |
Spindle | JST 9KW Air cooling |
Motor | Leadshine 1500W servo motor |
Run command | G-code |
Control system | LNC MW2200 |
Total weight | 2.5T |
Vacuum Pump | 7.5KW water pump |
Dust collection | 5.5KW |
Delivery time | Within15days after getting the payment |
Packing | Outside wood packing |
Payment | T/T Alibaba L/C Paypal etc. |
Packing Delivery
1. Outside package: Standard marine export plywood cases.
2. Inner package: Stretch film and plastic film for humidity.
We can package according to your requests
Product Name | 3D CNC Router Machine for Wood Cutting Engraving woodworking industry |
Brand | PHOENIX EQUIPMENT |
Customized | color, logo, voltage |
MOQ | 1 set |
Package | plywood wooden box |
Payment terms | Alibaba Trade Assurance, T/T, Alipay |
Usage | Wood, aluminum board, plastic, density board, wave board, PVC, acrylic, crystal, light marble, and other nonmetal materials and light metal materials. |
