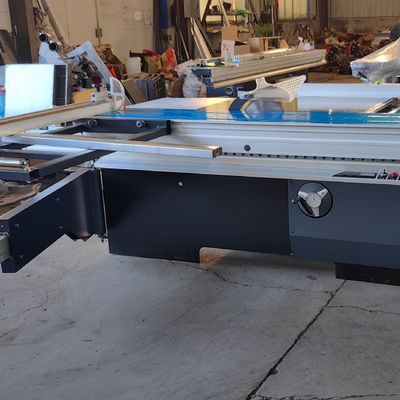

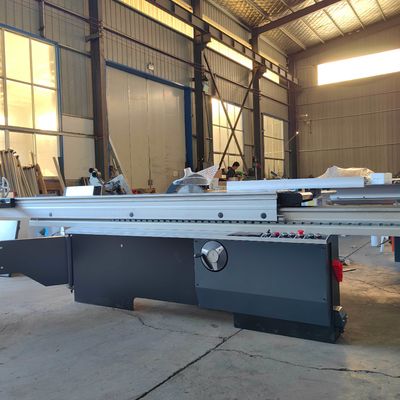

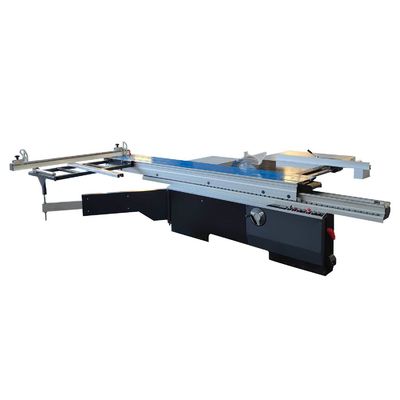

45-90 degree Tilting Wood Cut Machine Sliding Table Saw for Woodworking Industry
Product Details:
| Place of Origin: | Shandong, China |
| Brand Name: | phoenix equipment |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 set |
|---|---|
| Price: | $2,800.00/sets 1-4 sets |
| Packaging Details: | 1. Outside package: Standard marine export plywood cases.<br>2. Inner package: Stretch film and plastic film for humidity.<br>We can package according to your requests |
|
Detail Information |
|||
| Condition: | New | Type: | Panel Saw |
|---|---|---|---|
| Use: | Woodworking, Wood Cutting | Style: | Horizontal |
| Voltage: | 380V Or Customized | Dimension(L*W*H): | 3350*1100*1300mm |
| Warranty: | 1 Year | Application: | Furniture Factory |
| Weight (KG): | 800 KG | Power (kW): | 5.5kw |
| Key Selling Points: | High-accuracy | Max.Cutting Height At 90°(mm): | 75mm |
| Max.Cutting Height At 45°(mm): | 65mm | Max. Length Of Workpiece (mm): | 3200mm |
| Applicable Industries: | Manufacturing Plant, Home Use, Construction Works , Advertising Company | Marketing Type: | Hot Product 2023 |
| Machinery Test Report: | Provided | Video Outgoing-inspection: | Provided |
| Warranty Of Core Components: | 1 Year | Core Components: | Motor |
| Product Name: | Band Saw | Function: | Wood Cutting |
| Name: | 45-90 Degree Sliding Table Saw | Keyword: | Precision Wood Cutting Sliding Table Saw Machine |
| Tilting Saw Blade: | 45°-90° | Sliding Table Length * Width: | 3200*390mm |
| Max Cutting Length: | 3200mm | Max Cutting Width: | 1300mm |
| Main Saw Blade Diameter: | 300mm (250-400mm) | Main Saw Spindle Speed: | 4000-6000rpm |
Product Description
Products Description
Specification
Sliding table length * width | 3200*390mm | Tilting saw blade | 45°-90° |
Max cutting length | 3200mm | Main motor | 5.5kw |
Max cutting width | 1300mm | Scoring saw blade diameter | 120mm |
Main saw blade diameter | 300mm (250-400mm) | Scoring saw spindle speed | 7000-8000rpm |
Height of cut at 90° | 75mm | Scoring spindel diameter | 20mm |
Main saw spindle speed | 4000-6000rpm | Scoring motor | 1.1kw |
Main spindle diameter | 30mm | Overall dimensions | 3350*1100*1300mm |
Packing Delivery
1. Outside package: Standard marine export plywood cases.
2. Inner package: Stretch film and plastic film for humidity.
We can package according to your requests
Product Name | Sliding table saw |
Brand | PHOENIX EQUIPMENT |
Customized | color, logo, voltage |
MOQ | 1 set |
Package | plywood wooden box |
Payment terms | Alibaba Trade Assurance, T/T, Alipay |
Use | can be used for material cutting of density board, polished board, wood-based board, solid wood board, ABS board, PVC board and other boards. |
