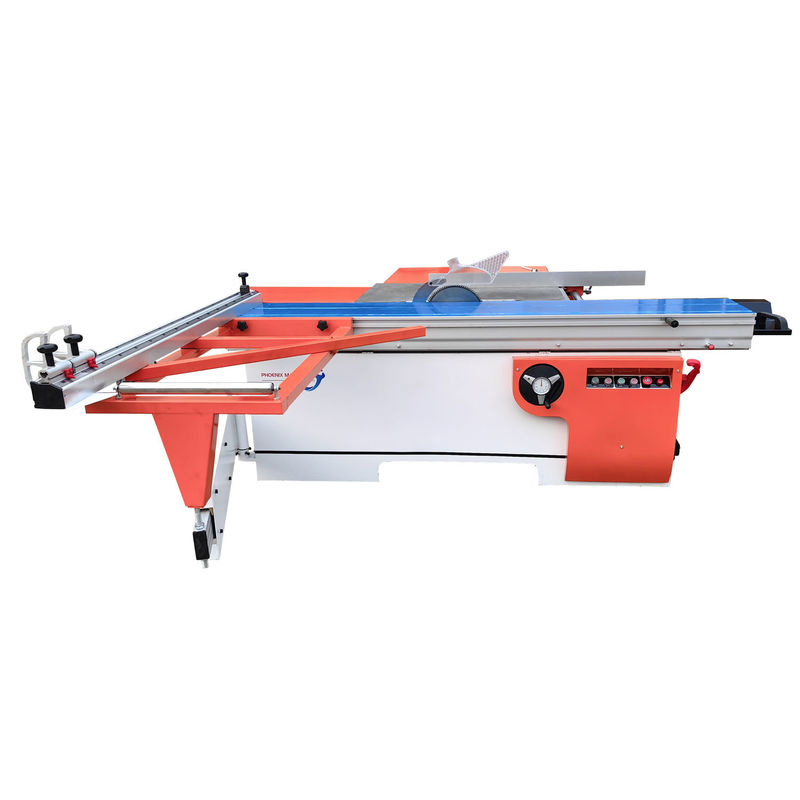

MJ6123 2300mm 45/90 Degrees Sliding Table Panel Saw Wood Cutting Machine for Furniture
Product Details:
| Place of Origin: | Shandong, China |
| Brand Name: | phoenix equipment |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 set |
|---|---|
| Price: | $1,750.00/sets 1-3 sets |
| Packaging Details: | 1. Outside package: Standard marine export plywood cases.<br>2. Inner package: Stretch film and plastic film for humidity.<br>We can package according to your requests |
|
Detail Information |
|||
| Condition: | New | Type: | Panel Saw, Table Panel Saw |
|---|---|---|---|
| Use: | Woodworking, Wood Cutting | Style: | Horizontal |
| Voltage: | 380V Or Customized | Warranty: | 1 Year |
| Application: | Furniture Factory | Weight (KG): | 700 KG |
| Power (kW): | 5 | Key Selling Points: | High-accuracy |
| Max.Cutting Height At 90°(mm): | 80mm | Max.Cutting Height At 45°(mm): | 56mm |
| Max. Length Of Workpiece (mm): | 2300mm | Applicable Industries: | Manufacturing Plant, Home Use, Construction Works , Advertising Company |
| Marketing Type: | Hot Product 2023 | Machinery Test Report: | Provided |
| Video Outgoing-inspection: | Provided | Warranty Of Core Components: | 1 Year |
| Core Components: | Motor | Product Name: | Manual Panel Saw MJ6123 |
| Function: | Wood Cutting | Model: | MJ6123 |
| Usage: | Wood Panel Sawing | Name: | Sliding Table Saw |
| Main Saw Spindle Speed: | 4500-6000rpm | Tilting Saw Blade: | 45°-90° |
| Sliding Table Length: | 2300mm | Sliding Table Width: | 375mm |
Product Description
Products Description
Specification
PANEL SAW MODEL | Manual panel saw MJ6123 |
Max cutting length | 2300mm |
Max cutting width | 2300mm |
Sliding table length | 2300mm |
Sliding table width | 375mm |
Main saw blade diameter | 300mm |
Scoring saw blade diameter | 120mm |
Main saw spindle speed | 4500-6000rpm |
Scoring saw spindle speed | 9000rpm |
Main spindle diameter | 30mm |
Scoring spindel diameter | 20mm |
Tilting saw blade | 45°-90° |
Height of cut at 45° | 56mm |
Height of cut at 90° | 80mm |
Main motor | 5.5KW |
Scoring motor | 1.1KW |
Gross weight | 700kg |
Packing Delivery
1. Outside package: Standard marine export plywood cases.
2. Inner package: Stretch film and plastic film for humidity.
We can package according to your requests
Product Name | Factory Supplied Woodworking Machine Sliding Table Saw For Plywood And Panel Cutting Cheap price |
Brand | PHOENIX EQUIPMENT |
Customized | color, logo, voltage |
MOQ | 1 set |
Package | plywood wooden box |
Payment terms | Alibaba Trade Assurance, T/T, Alipay |
Usage | Various wooden boards, density board side edges |
